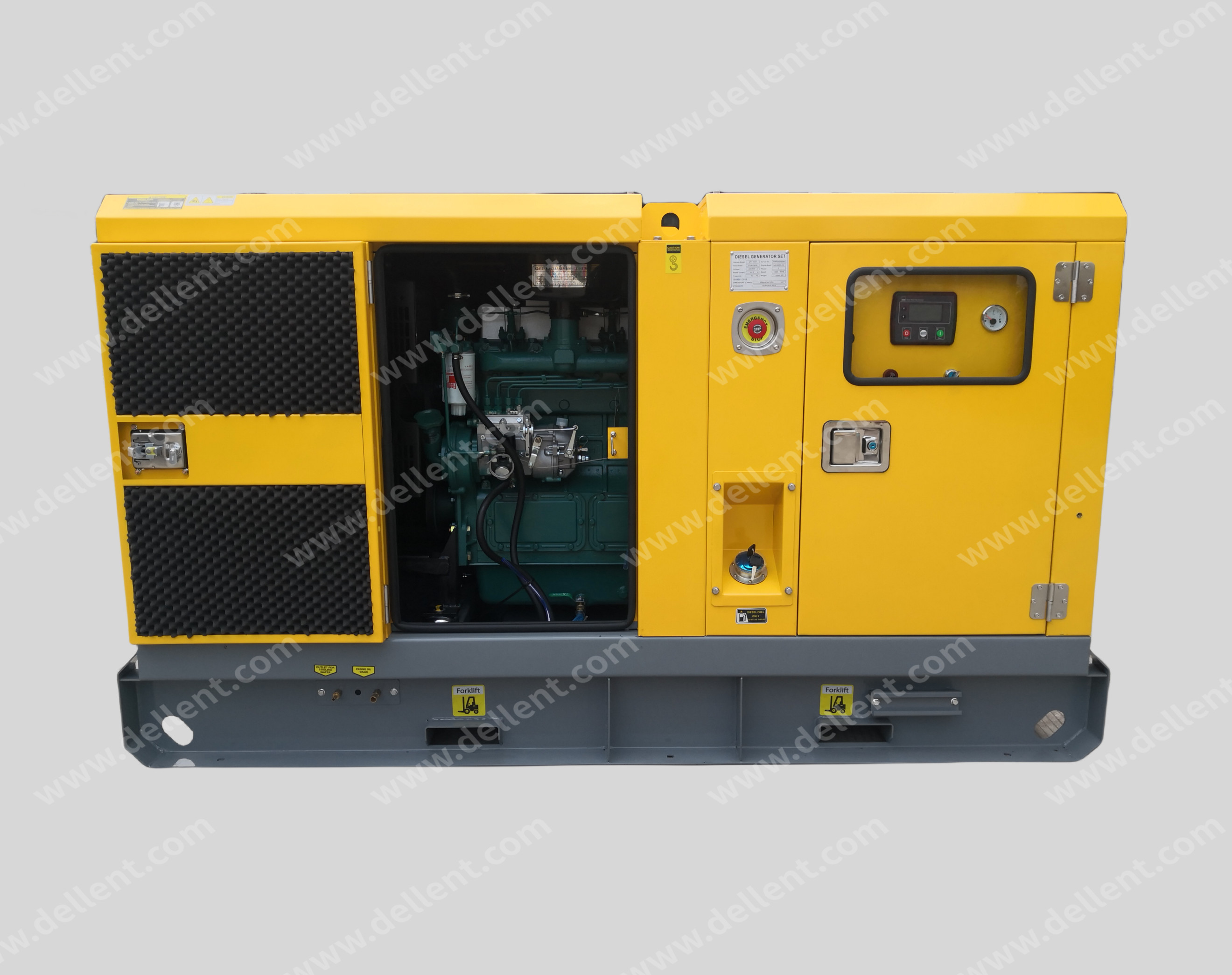

YDE4ZLD Yangdong Silent Genset , 60 Kva Silent Generator 12 Months Warranty

  • YDE4ZLD Yangdong Silent Genset , 60 Kva Silent Generator 12 Months Warranty
Place of Origin CHINA
Brand Name DELLENT-YANGDONG
Certification CE/ISO9001
Model Number DE-YD66
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Silent Genset Engine Model YD4EZLD
Frequency 50Hz Engine Brand YANGDONG
No. Of Cylinder 4 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Smartgen Prime Power 48kW/60kVA
Standby Power 53kW/66kVA
Highlight

Yangdong Silent Genset

,

ISO9001 60 Kva Silent Generator
Leave a Message
Product Description

50Hz YDE4ZLD Silent of Yangdong Diesel Generator

Ⅰ. PRODUCT DESCRIPTION
Product Introduce:
Yangdong diesel generator is China engine.
We have all series from 8kva to 75kva.
Advantage of our Yangdong diesel generator :
  1. Yangdong diesel generator have a sturdy housing；
  2. Longer lifespan；
  3. Lower maintenance costs；
  4. Lower noise level；
  5. Complete Yangdong diesel generator which canopy adopts rainproof and corrosion-resistant electrostatic powder coating. After high-temperature baking, it is leveled and solidified to
Details GenSet Model DE-YD66 Type Silent(optional open)
Frequency (Hz) 50 Speed rpm 1500
Phase 3 Rated voltage 230v/380v/400v/415v
Prime output 48kW/60kVA Standby output 53kW/66kVA
Cylinder 4 Cooling system Water
Min specific fuel consumption at full load(g/kW.h) ≤218 Overall dimensions L*W*H(mm) 892*618*740
Fuel Con.(L/H) 16.2 Fuel capacity tank 75L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand Yangdong
Model YD4EZLD Fuel Diesel
Cylinder 4 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 85×90
Cyle 4 Compression ratio 18.0:1
Governor Mechanical Displacement(L) 4.1
Details Alternator Brand Stamford, Leroy Somer, Mecc Alte
Model PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
Optional single phase
Delivery date
Custom 30 working days after payment
For more details please contact us

Ⅱ. Why Choose Us:

YDE4ZLD Yangdong Silent Genset , 60 Kva Silent Generator 12 Months Warranty 0Ⅲ. QUALIFICATION CENTIFICATE:

YDE4ZLD Yangdong Silent Genset , 60 Kva Silent Generator 12 Months Warranty 1

Ⅳ. FACTORY INTERIOR:

YDE4ZLD Yangdong Silent Genset , 60 Kva Silent Generator 12 Months Warranty 2



FAQ

Q: What's your delivery time?

A: Standard product 20 days - 30 days.

Q: Can we add our logo to products?

A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.

Q: Can we customize the product?

A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system
