Low Noise 26.4kw 33kva Diesel Generator Y4102D Standby Power Diesel Generator 50Hz

  • Low Noise 26.4kw 33kva Diesel Generator Y4102D Standby Power Diesel Generator 50Hz
Place of Origin CHINA
Brand Name DELLENT- YANGDONG
Certification CE ISO
Model Number DE-YD32
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price USD2000-4000
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 33kva Diesel Generator Controller Brand Smartgen
Cooling System Water Cooled Engine Brand YANGDONG
Model YANGDONG DIESEL GENERATOR Noise Level ≤85dB(A)
Rated Frequency 50Hz Rated Speed 1500rpm
Highlight

33kva Diesel Generator

,

Low Noise Standby Power Diesel Generator

,

Standby Power Diesel Generator 50Hz
Leave a Message
Product Description

Low Noise 26.4kw 33kva Diesel Generator Y4102D Standby Power Diesel Generator



High Light:

Low Noise 33kva Diesel Generator

,

Y4102D Standby Power Diesel Generator

,

Low Noise Standby Power Diesel Generator

Product Description

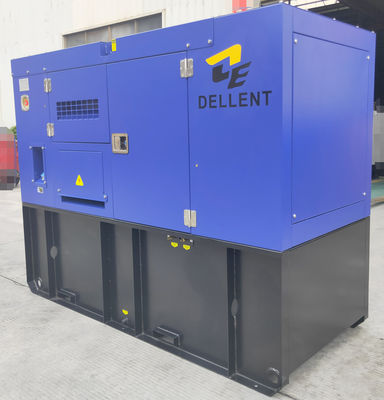

Silent 26.4kw/33kva Yangdong Diesel Generator Y4102D

Product Introduce:
Yangdong diesel generator is China engine.
We have all series from 8kva to 71kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Yangdong diesel generator :
Yangdong diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.

Product parameters:



We have power from 10kw-3000kw,
any interesting please contact with us to quote the best price for you
Details Genset GenSet Model DE-YD36 Type Silent(optional open)
Frequency (Hz) 50/60 Speed rpm 1500/1800
Phase 3 SRated voltage 230v/380v/400v/415v
Prime output 26.4kW/33kva(1500rpm) Standby output 29kW/36.3kva(1500rpm)
32kW/40kva(1800rpm) 35kW/44kva(1800rpm)
Cylinder 4 Cooling system Water
N.W (kg) 880 Size (L*W*H)mm 2250*850*1050
Fuel Con.(L/H) 9.2 Fuel capacity tank 75L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand Yangdong
Model Y4102D Fuel Diesel
Cylinder 4 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 102 X 118
Cyle 4 Staoke Compression ratio 18.0:1
Governor Mechanical Displacement(L) 3.875
Details Alternator Brand Stamford, Leroy Somer, Mecc Alte
Model PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
Optional single phase

Delivery date
Custom 30 working days after payment
For more details please contact us



Options:



Canopy Design: including Denyo, Caterpillar, and Atlas, etc.



Alternator (AC): Stamford, Leroy Somer, Marathon, and Dellent  brushless alternators TFW2 and YHG series. etc
1)Brushless, 4 poles, rotation magne;

2)IP21-23(NEMA1) enclose is standard for all industrial alternators;
3)H class insulation system;

4)AVR self-regulated, voltage regulation rate: ≤±1%;
5)Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts


Control panel: Manual or digital control panel(with AMF function), varies brand for option; ATS can be option
1)Auto start when power goes out. Auto-stop when power comes back on;

2)Worldwide technical support with programmable software download;

3)Full online documentation;

4)Trouble shooting symbols to assist owner on concerns with the generator.


Type: silent type with canopy to reduce the noise level and Open frame without canopy for option



Fuel tank: 8-10 hours in normal, can be custmised
