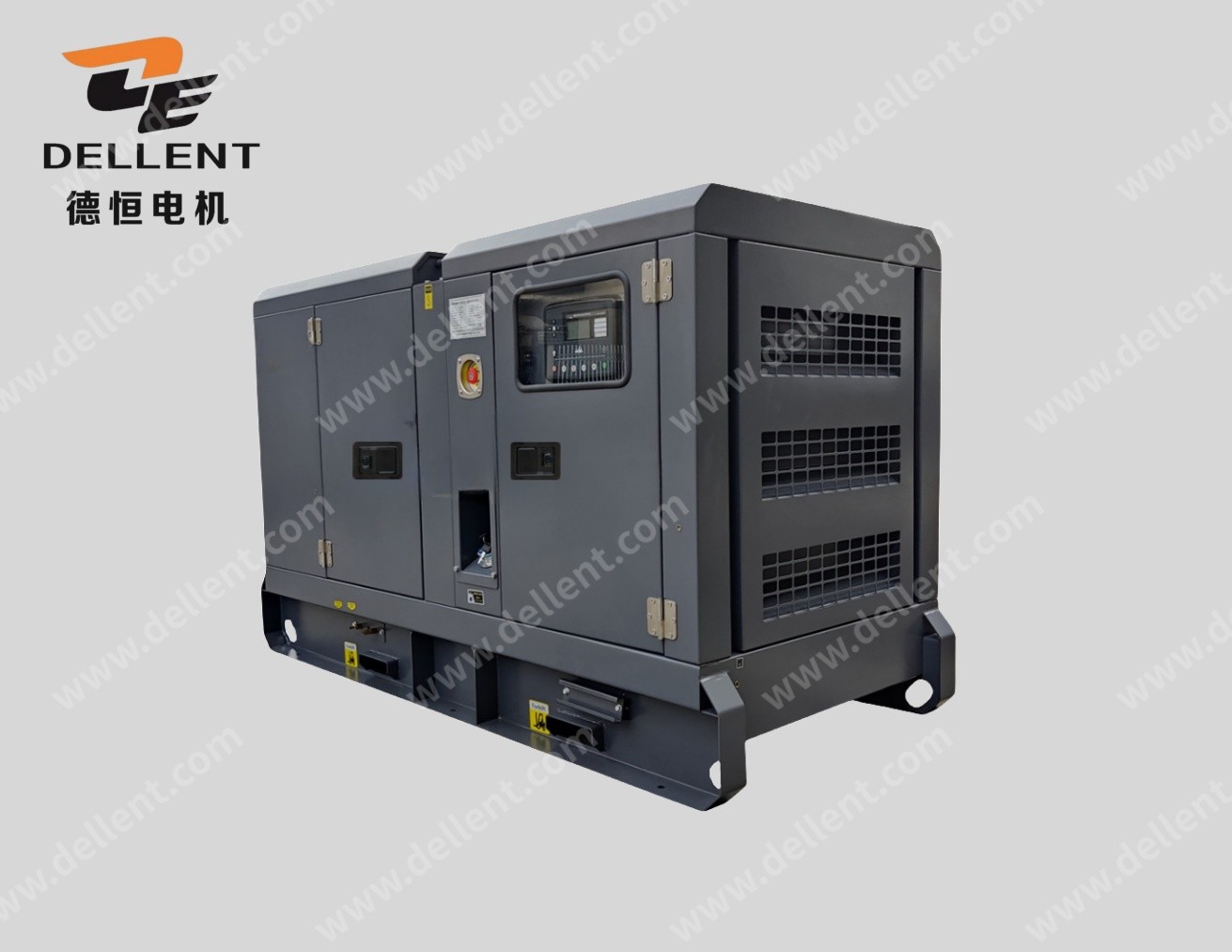

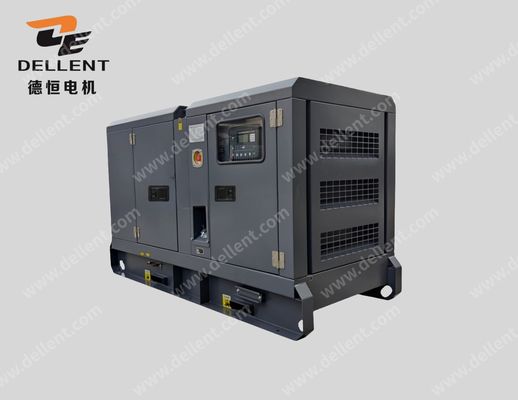

Yangdong YD380D Diesel Silent Generator 50Hz With 3 Cylinder In Line

  • Yangdong YD380D Diesel Silent Generator 50Hz With 3 Cylinder In Line
Place of Origin CHINA
Brand Name DELLENT-YANGDONG
Certification CE/ISO9001
Model Number DE-YD9.5
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Diesel Silent Generator Engine Model YD380D
Frequency 50Hz Engine Brand YANGDONG
No. Of Cylinder 3 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Smartgen Prime Power 6.8kW/8.5kVA
Standby Power 7.6kW/9.5kVA
Highlight

Yangdong Diesel Silent Generator

,

YD380D Diesel Silent Generator

,

Yangdong YD380D
Leave a Message
Product Description

50Hz YD380D silent of Ynagdong Diesel Generator

Ⅰ. PRODUCT DESCRIPTION
Product Introduce:
Yangdong diesel generator is China engine.
We have all series from 8kva to 71kva.
Advantage of our Yangdong diesel generator :
Yangdong diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.

1.Diesel generators are strong-built, ideal for emergency back-up,job sites and industrial appplications.

2.Powered by reliable air/water cooled diesel generators sets, industrial grade, great fuel efficiency, less maintenance, long operating life.

3.Strong technology and high-quality personnel, continuous innovation and perfect management.

4.Each generator will be packed in both strong and economic way tomake sure goods perfectly on delivery.

Details GenSet Model DE-YD9.5 Type Silent(optional open)
Frequency (Hz) 50 Speed rpm 1500
Phase 3 Rated voltage 230v/380v/400v/415v
Prime output 6.8kW/8.5kVA Standby output 7.6kW/9.5kVA
Cylinder 3 Cooling system Water
Min specific fuel consumption at full load(g/kW.h) ≤260 Overall dimensions L*W*H(mm) 587*474*628
Fuel Con.(L/H) 2.6 Fuel capacity tank 75L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand Yangdong
Model YD380D Fuel Diesel
Cylinder 3 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 80×90
Cyle 3 Staoke Compression ratio 18.0:1
Governor Mechanical Displacement(L) 1.357
Details Alternator Brand Stamford, Leroy Somer, Mecc Alte
Model PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
Optional single phase
Delivery date
Custom 30 working days after payment
For more details please contact us

Ⅱ. Why Choose Us:

Yangdong YD380D Diesel Silent Generator 50Hz With 3 Cylinder In Line 0Ⅲ. QUALIFICATION CENTIFICATE:

Yangdong YD380D Diesel Silent Generator 50Hz With 3 Cylinder In Line 1

Ⅳ. FACTORY INTERIOR:

Yangdong YD380D Diesel Silent Generator 50Hz With 3 Cylinder In Line 2
