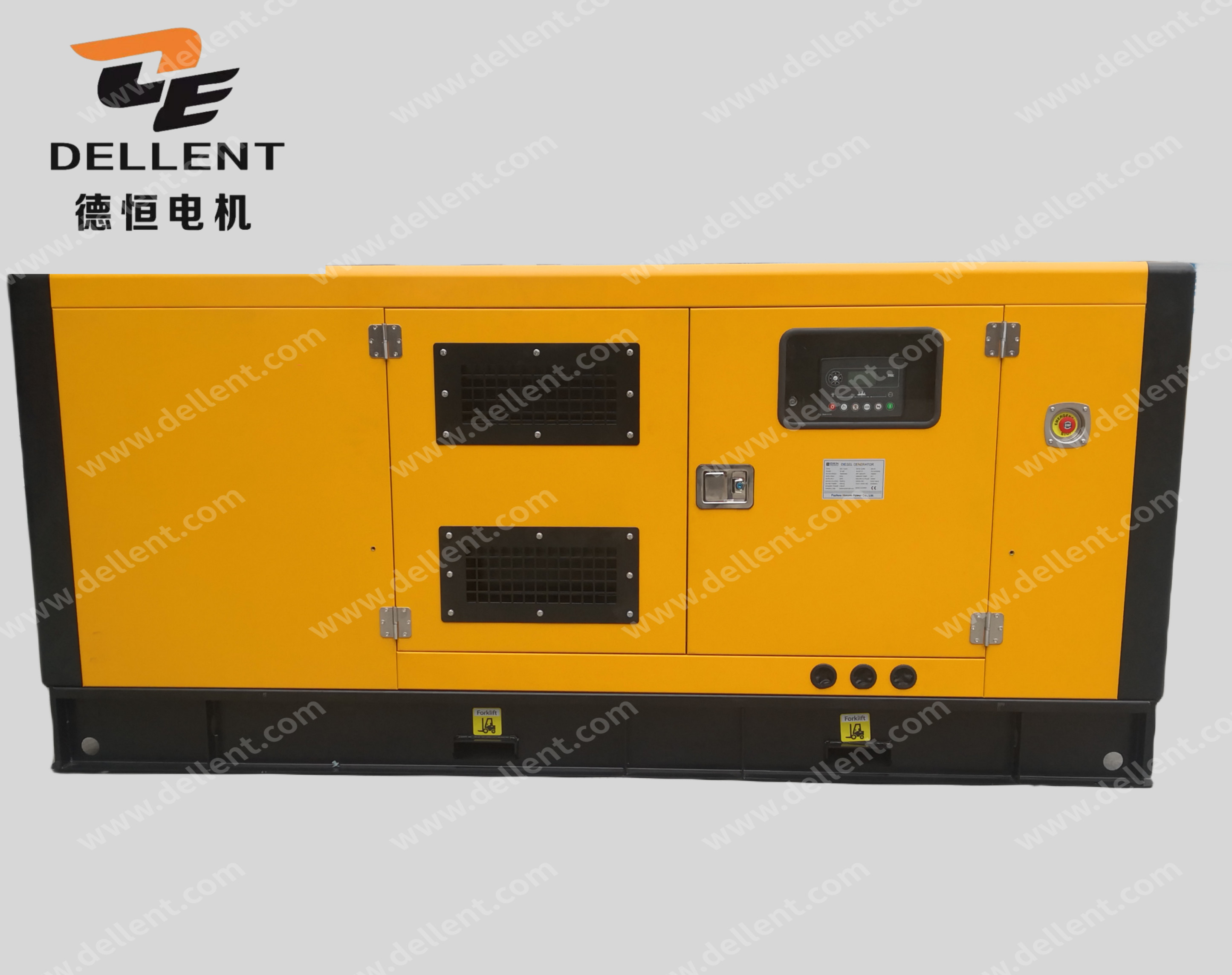

YSD490D Yangdong Diesel Generator 1500 Rpm Silent Diesel Generator
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELLENT-YANGDONG |
| Certification | CE/ISO9001 |
| Model Number | DE-YD18 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1*20GP |
| Price | face to face |
| Packaging Details | PLASTIC WRAP OR PLYWOOD CASE |
| Delivery Time | 30 DAYS FROM DEPOSIT RECEIVED |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Model | YSD490D | Frequency | 50Hz |
|---|---|---|---|
| Engine Brand | YANGDONG | No. Of Cylinder | 4 Cylinder In Line |
| Rated Speed | 1500rpm | Voltage | 400V/230V |
| Warranty | 12 Months | Controller | Smartgen |
| Prime Power | 13kW/16kVA | Standby Power | 14kW/18kVA |
| Name | Yangdong Diesel Generator | ||
| Highlight | YSD490D Yangdong Diesel Generator,Yangdong Diesel Generator Silent,1500 Rpm Silent Diesel Generator |
||
Product Description
50Hz YSD490D Silent of Ynagdong Diesel Generator
Ⅰ. PRODUCT DESCRIPTION
Product Introduce:
Yangdong diesel generator is China engine.
We have all series from 8kva to 71kva.
Yangdong diesel generator is China engine.
We have all series from 8kva to 71kva.
Advantage of our Yangdong diesel generator :
Yangdong diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.
| Details | GenSet Model | DE-YD18 | Type | Silent(optional open) |
| Frequency (Hz) | 50 | Speed rpm | 1500 | |
| Phase | 3 | Rated voltage | 230v/380v/400v/415v | |
| Prime output | 13kW/16kVA | Standby output | 14kW/18kVA | |
| Cylinder | 4 | Cooling system | Water | |
| Min specific fuel consumption at full load(g/kW.h) | ≤246 | Overall dimensions L*W*H(mm) | 716*530*670 | |
| Fuel Con.(L/H) | 6.1 | Fuel capacity tank | 75L | |
| Running time (H) | 8 | Sound decibel | 70DB-75DB | |
| Details Engine | Brand | Yangdong | ||
| Model | YSD490D | Fuel | Diesel | |
| Cylinder | 4 | Cooling system | Water-cooling | |
| Cylider arrangemant | IN-LINE | Bore and Stroke(mm) | 90×100 | |
| Cyle | 4 Staoke | Compression ratio | 18.0:1 | |
| Governor | Mechanical | Displacement(L) | 2.54 | |
| Details Alternator | Brand | Stamford, Leroy Somer, Mecc Alte | ||
| Model | PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C | |||
| No.of bearings | 1 | Insulation class | H | |
| Wires | 12 | Ingress protection | IP23 | |
| Excitation system | Shunt | Volrage | ±1% | |
| Optional single phase | ||||
| Delivery date | ||||
| Custom | 30 working days after payment | |||
| For more details please contact us | ||||
