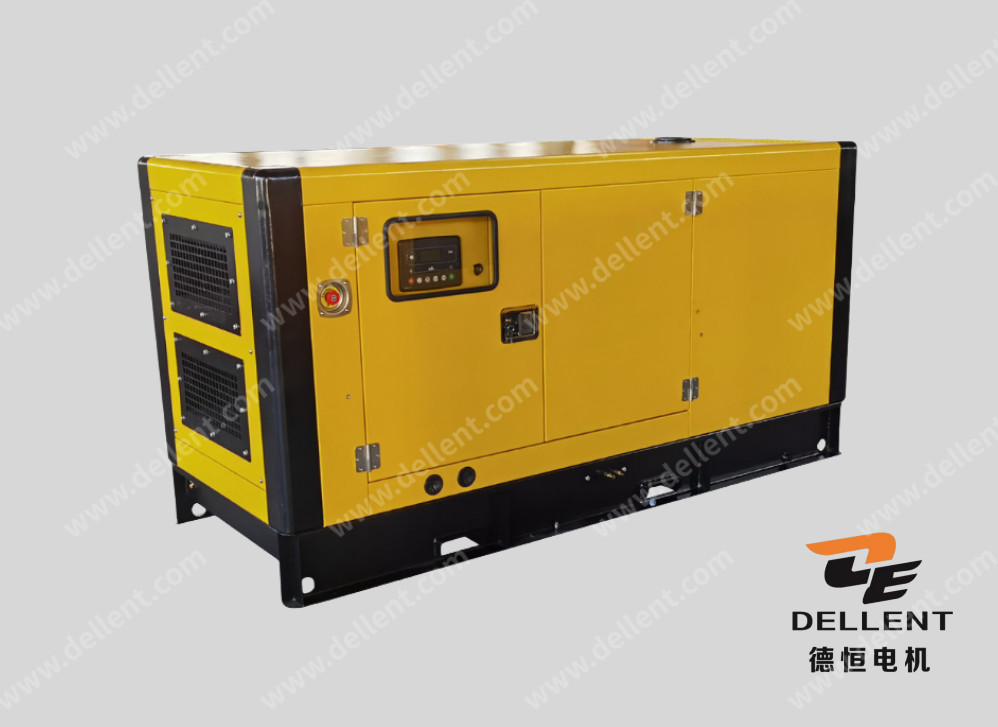

50Hz 7.6kW 9.5kVA Standby Power Diesel Generator Yangdong YD380D

  • 50Hz 7.6kW 9.5kVA Standby Power Diesel Generator Yangdong YD380D
Place of Origin CHINA
Brand Name DELLENT-YANGDONG
Certification CE/ISO9001
Model Number DE-YD9.5
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Standby Power Diesel Generator Engine Model YD380D
Frequency 50Hz Engine Brand YANGDONG
No. Of Cylinder 3 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Smartgen Prime Power 6.8kW/8.5kVA
Standby Power 7.6kW/9.5kVA
Highlight

7.6kW Standby Power Diesel Generator

,

9.5kVA Standby Power Diesel Generator
Leave a Message
Product Description

 50Hz 7.6kW 9.5kVA Standby Power of Ynagdong Diesel Generator

Ⅰ. PRODUCT DESCRIPTION
Product Introduce:
Yangdong diesel generator is China engine.
We have all series from 8kva to 71kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Yangdong diesel generator :
Yangdong diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Complete Yangdong diesel generator which canopy adopts rainproof and corrosion-resistant electrostatic powder coating. After high-temperature baking, it is leveled and solidified to form a dense protective coating, which is both corrosion-resistant and wear-resistant.


Details GenSet Model DE-YD9.5 Type Silent(optional open)
Frequency (Hz) 50 Speed rpm 1500
Phase 3 Rated voltage 230v/380v/400v/415v
Prime output 6.8kW/8.5kVA Standby output 7.6kW/9.5kVA
Cylinder 3 Cooling system Water
Min specific fuel consumption at full load(g/kW.h) ≤260 Overall dimensions L*W*H(mm) 587*474*628
Fuel Con.(L/H) 2.6 Fuel capacity tank 75L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand Yangdong
Model YD380D Fuel Diesel
Cylinder 3 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 80×90
Cyle 3 Staoke Compression ratio 18.0:1
Governor Mechanical Displacement(L) 1.357
Details Alternator Brand Stamford, Leroy Somer, Mecc Alte
Model PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
Optional single phase
Delivery date
Custom 30 working days after payment
For more details please contact us

Ⅱ. Why Choose Us:

50Hz 7.6kW 9.5kVA Standby Power Diesel Generator Yangdong YD380D 0Ⅲ. QUALIFICATION CENTIFICATE:

50Hz 7.6kW 9.5kVA Standby Power Diesel Generator Yangdong YD380D 1

Ⅳ. FACTORY INTERIOR:

50Hz 7.6kW 9.5kVA Standby Power Diesel Generator Yangdong YD380D 2

FAQ

Q: What's your delivery time?

A: Standard product 20 days - 30 days.

Q: Can we add our logo to products?

A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.

Q: Can we customize the product?

A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system

Tags:

Standby Power Diesel Generator

Diesel Silent Generator

Yangdong Genset
