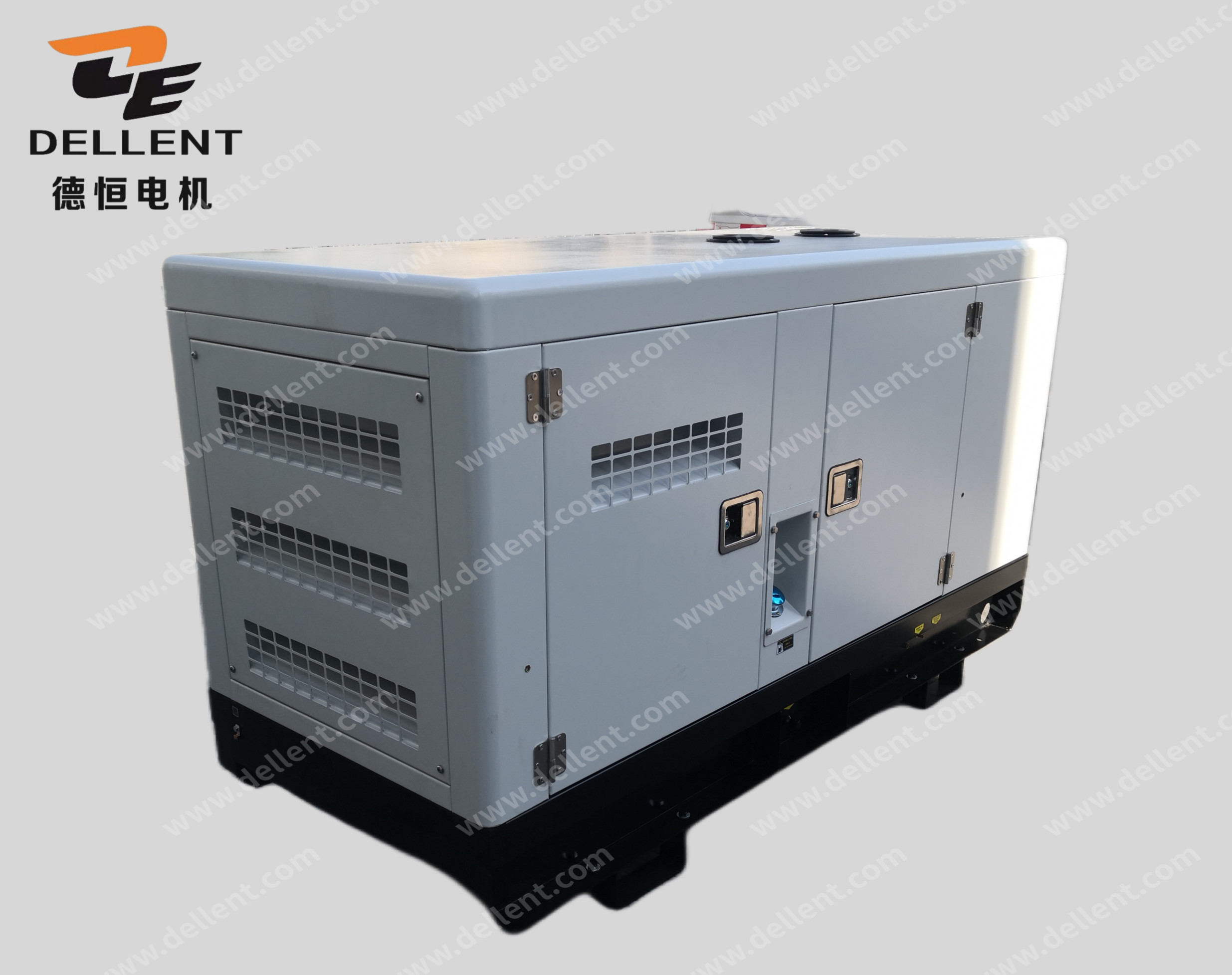

YD385D Yangdong Diesel Generator 1500 Rpm Silent Genset 3 Cylinder In Line

  • YD385D Yangdong Diesel Generator 1500 Rpm Silent Genset 3 Cylinder In Line
Place of Origin CHINA
Brand Name DELLENT-YANGDONG
Certification CE/ISO9001
Model Number DE-YD11
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Yangdong Diesel Generator Engine Model YD385D
Frequency 50Hz Engine Brand YANGDONG
No. Of Cylinder 3 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Smartgen Prime Power 8kW/10kVA
Standby Power 9kW/11kVA
Highlight

YD385D Yangdong Diesel Generator

,

Yangdong Diesel Generator 1500 Rpm

,

1500 Rpm Diesel Generator Silent
Leave a Message
Product Description

50Hz YD385D Silent of Ynagdong Diesel Generator

Ⅰ.PRODUCT DESCRIPTION
Product Introduce:
Yangdong diesel generator is China engine.We have all series from 8kva to 75kva.Our Yangdong diesel generators are known for their durability, fuel efficiency, and low maintenance requirements. With Yangdong engines at their core, these generators offer reliable power output that can be trusted for a range of applications. From backup power for homes and businesses to powering construction sites and events, our Yangdong diesel generators deliver the power you need when you need it.
Advantage of our Yangdong diesel generator :
Yangdong diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.
Details GenSet Model DE-YD11 Type Silent(optional open)
Frequency (Hz) 50 Speed rpm 1500
Phase 3 Rated voltage 230v/380v/400v/415v
Prime output 8kW/10kVA Standby output 9kW/11kVA

Cylinder 3 Cooling system Water
Min specific fuel consumption at full load(g/kW.h) ≤255 Overall dimensions L*W*H(mm) 587*474*615
Fuel Con.(L/H) 3 Fuel capacity tank 75L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand Yangdong
Model YD385D Fuel Diesel
Cylinder 3 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 85×90
Cyle 3 Compression ratio 18.0:1
Governor Mechanical Displacement(L) 1.532
Details Alternator Brand Stamford, Leroy Somer, Mecc Alte
Model PI 044D/TAL-A40-C/LSA 40 VS0/ECP28 1VS4C
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
Optional single phase
Delivery date
Custom 30 working days after payment
For more details please contact us

Ⅱ. Why Choose Us:

YD385D Yangdong Diesel Generator 1500 Rpm Silent Genset 3 Cylinder In Line 0Ⅲ. QUALIFICATION CENTIFICATE:

YD385D Yangdong Diesel Generator 1500 Rpm Silent Genset 3 Cylinder In Line 1

Ⅳ. FACTORY INTERIOR:

YD385D Yangdong Diesel Generator 1500 Rpm Silent Genset 3 Cylinder In Line 2
