60Hz Isuzu Diesel Genset 40kVA Standby Power With Smartgen Controller

  • 60Hz Isuzu Diesel Genset 40kVA Standby Power With Smartgen Controller
Place of Origin CHINA
Brand Name DELLENT-ISUZU
Certification CE ISO
Model Number DE-IS45
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Isuzu Diesel Genset Brand ISUZU
Cooling System Water Cooling Frequency 60HZ
Alternator Tamford/ Leroy Somer/ Mecc Alte Controller Model Deepsea/ ComAp/Smartgen
Phase Three Phase Type Diesel Generator
Controller Smartgen DSE Engine Model 4JB1TA
Prime Power 41kVA/33kW Standby Power 45kVA/36kW
Highlight

60Hz Isuzu Diesel Genset

,

Isuzu Diesel Genset 40kVA

,

Standby Power Isuzu Diesel Genset
Leave a Message
Product Description

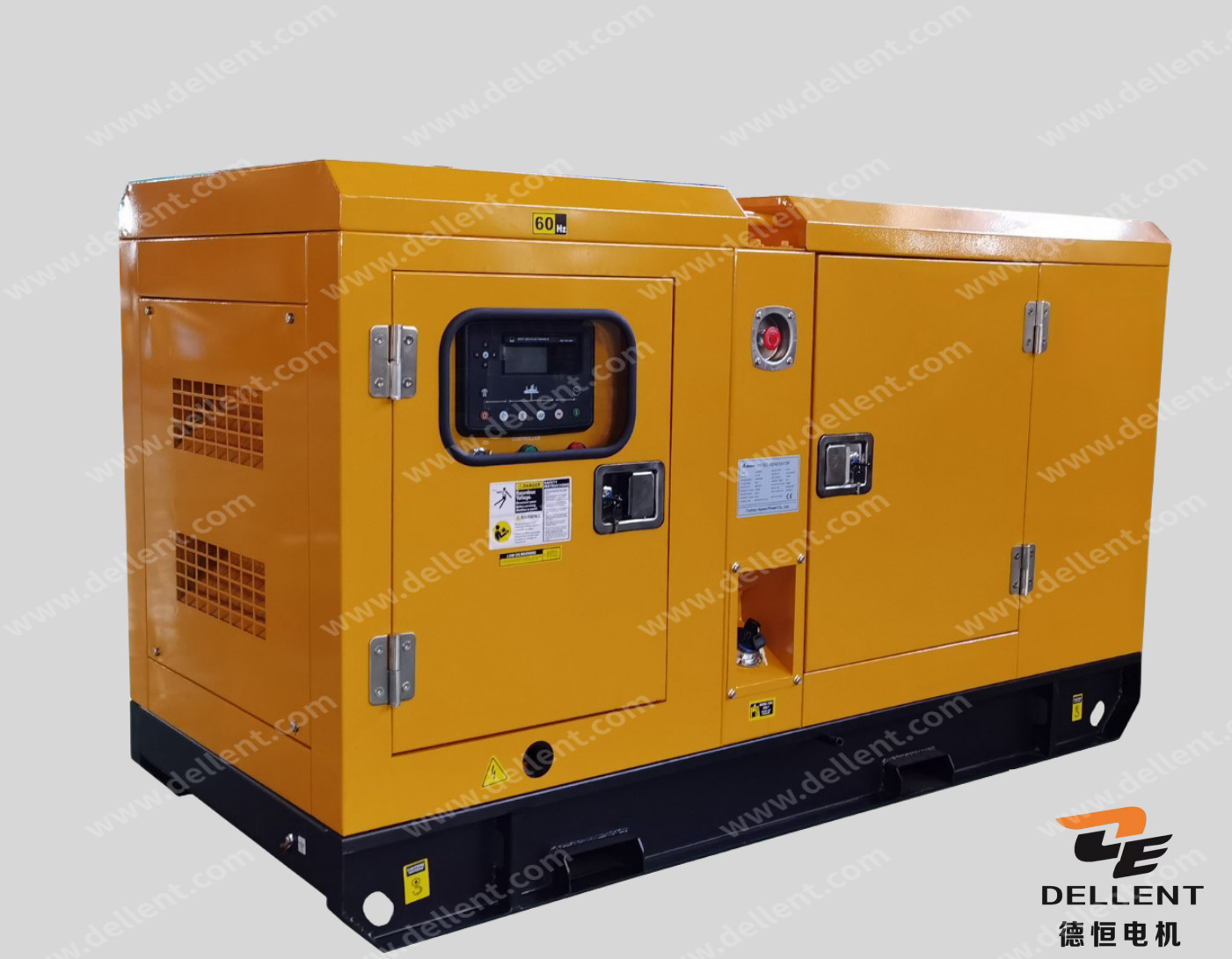

60Hz Isuzu Diesel Genset 40kVA Standby Power With Smartgen Controller





 Light:

Commercial ISUZU 40kVA Generator

,4JB1TA

 Engine Diesel  Generator

,

CE ISUZU 40kVA Generator ,60HZ

Ⅰ.PRODUCT DESCRIPTION

Product Introduce:
Our Isuzu engine diesel generator have all series from 20kva to 106kva.Looking for reliable Isuzu generators for your power needs? Look no further than our Isuzu generator dealership! We are proud to offer a wide range of high-quality Isuzu gensets that are perfect for both residential and commercial use.



Our Isuzu generators are known for their superior performance, durability, and efficiency, making them the perfect choice for anyone who needs reliable and uninterrupted power. Whether you need a backup power source for your home or office or you need a reliable generator for your industrial or construction site, we have the perfectIsuzu generator for you.

Advantage of our Isuzu diesel generator :
Isuzu diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.

Product parameters:

Specification:



Generator Set Specification
Model DE-IS45
Max. Power kVA 40
kW 32
Rate Power kVA 36
kW 28.8
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 94.5
Dimension For Open-type Genset mm 1560 X 680 X 1350
Weight For Open-type Genset kg 630
Dimension For Soundproof Genset mm 1950 X 900 X 1250
Weight For Soundproof Generator kg 960


Technical Data of ISUZU Diesel Engine:



Engine Specification
Engine Manufacturer Isuzu Engine Co., Ltd.
Engine Brand Isuzu
Engine Model 4JB1T
No. of Cylinder 4 Cylinder in line
Aspiration   Turbocharged
Governor Electric
Engine Max. Output Power kW 38
Displacement L 2.8
Starting Voltage V 12
Bore mm 93
Stroke mm 102
Lubrication Oil Capacity L 5.5
Control Panel Specification:
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 80
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

60Hz Isuzu Diesel Genset 40kVA Standby Power With Smartgen Controller 0

Ⅲ. QUALIFICATION CENTIFICATE:60Hz Isuzu Diesel Genset 40kVA Standby Power With Smartgen Controller 1

Ⅳ. FACTORY INTERIOR:

60Hz Isuzu Diesel Genset 40kVA Standby Power With Smartgen Controller 2



If you need ISUZU generator with other models technical data, kindly contact us for catalogues!
