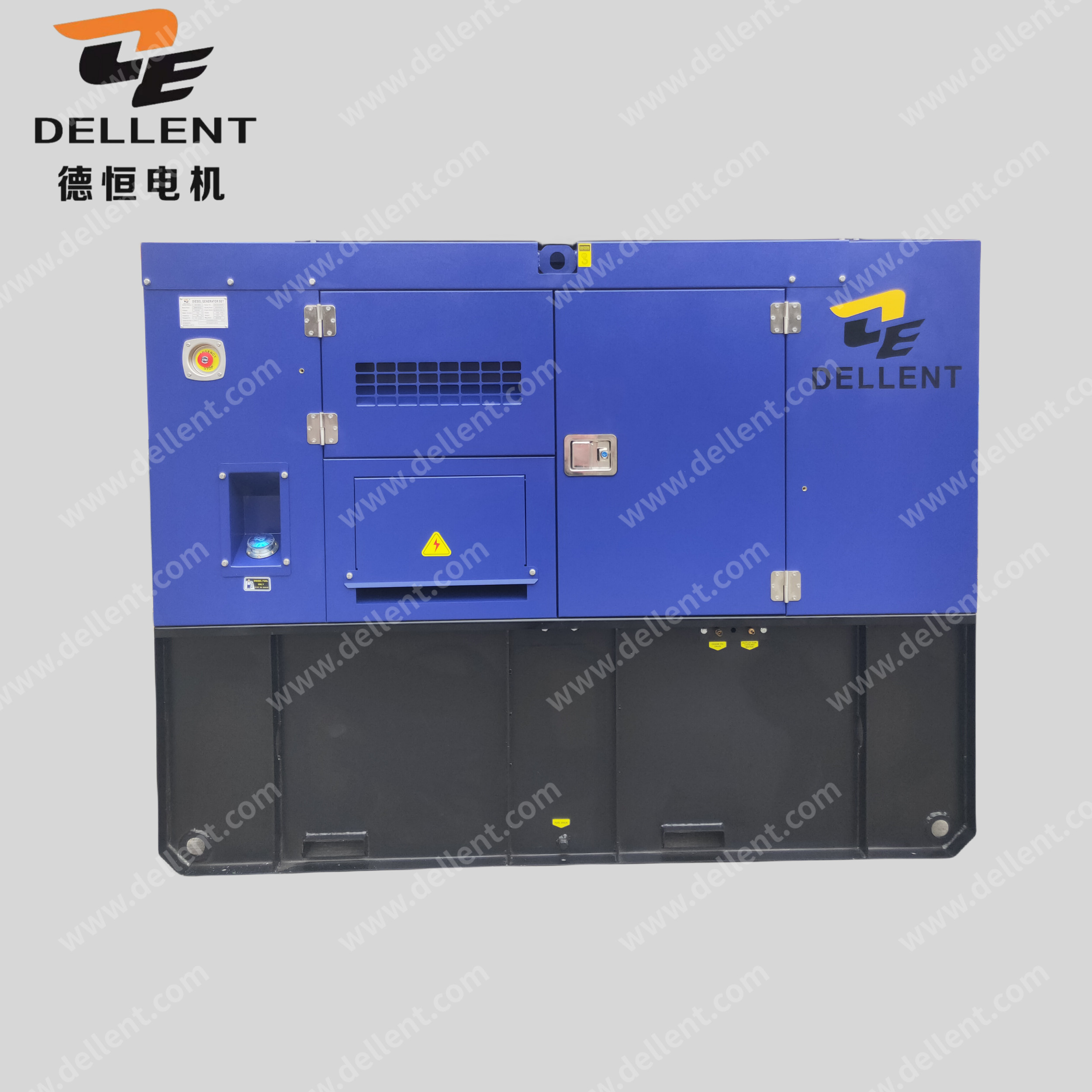

50kW Isuzu Diesel Generator 3 Phase Water Cooled With 4BG1-Z Engine

  • 50kW Isuzu Diesel Generator 3 Phase Water Cooled With 4BG1-Z Engine
Place of Origin CHINA
Brand Name DELLENT-ISUZU
Certification CE ISO
Model Number DE-IS69
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand ISUZU Name Isuzu Diesel Generator
Cooling System Water Cooling Frequency 50HZ
Alternator Tamford/ Leroy Somer/ Mecc Alte Controller Model Deepsea/ ComAp/Smartgen
Phase Three Phase Type Diesel Generator
Controller Smartgen DSE Engine Model 4BG1-Z
Prime Power 62.5kVA/50kW Standby Power 68.75kVA/55kW
Highlight

50kW Isuzu Diesel Generator

,

Isuzu Diesel Generator Water Cooled

,

50kw 3 Phase Diesel Generator
Leave a Message
Product Description

50HZ 50kW Isuzu Diesel Generator With 4BG1-Z Engine





 Light:

Commercial ISUZU 50kW Generator

,

4BG1-Z Engine Diesel  Generator

,

CE ISUZU 50kW Generator ,50HZ

Ⅰ.PRODUCT DESCRIPTION

50kW Isuzu Diesel Generator 3 Phase Water Cooled With 4BG1-Z Engine 050kW Isuzu Diesel Generator 3 Phase Water Cooled With 4BG1-Z Engine 1
Product Introduce:
Our Isuzu engine diesel generator have all series from 20kva to 106kva.Our Isuzu diesel generators are known for their durability, fuel efficiency, and low maintenance requirements. With Isuzu engines at their core, these generators offer reliable power output that can be trusted for a range of applications. From backup power for homes and businesses to powering construction sites and events, our Isuzu diesel generators deliver the power you need when you need it.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Isuzu diesel generator :
  • Complete Isuzu diesel generator which canopy adopts rainproof and corrosion-resistant electrostatic powder coating. After high-temperature baking, it is leveled and solidified to form a dense protective coating, which is both corrosion-resistant and wear-resistant.
  • Silent canopy with 3cm laminated flame-retardant sound-absorbing cotton, rubber sealing strips on door tracks, built-in silencer, all-around protection and mute measures, which effectively reduce noise pollution.

Product parameters:

Specification:

Model DE-IS69
Max. Power kVA 69
kW 55
Rate Power kVA 63
kW 50
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 90.2
Fuel Tank Capacity L 120

Technical Data of ISUZU Diesel Engine:



Engine Specification
Engine Manufacturer Isuzu Engine Co., Ltd.
Engine Brand ISUZU
Engine Model 4BG1-Z
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 59
Displacement L 4.3
Compression Ratio 17.5 : 1
Starting Voltage V 12
Bore mm 105
Stroke mm 125
Lubrication Oil Capacity L N.A.
Intake Air Flow M3/Min N.A.
Fuel Consumption at 100% Load L/H

14.92771084
Control Panel Specification:
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 125
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

50kW Isuzu Diesel Generator 3 Phase Water Cooled With 4BG1-Z Engine 2

Ⅲ. QUALIFICATION CENTIFICATE:50kW Isuzu Diesel Generator 3 Phase Water Cooled With 4BG1-Z Engine 3

Ⅳ. FACTORY INTERIOR:

50kW Isuzu Diesel Generator 3 Phase Water Cooled With 4BG1-Z Engine 4



If you need ISUZU generator with other models technical data, kindly contact us for catalogues!
