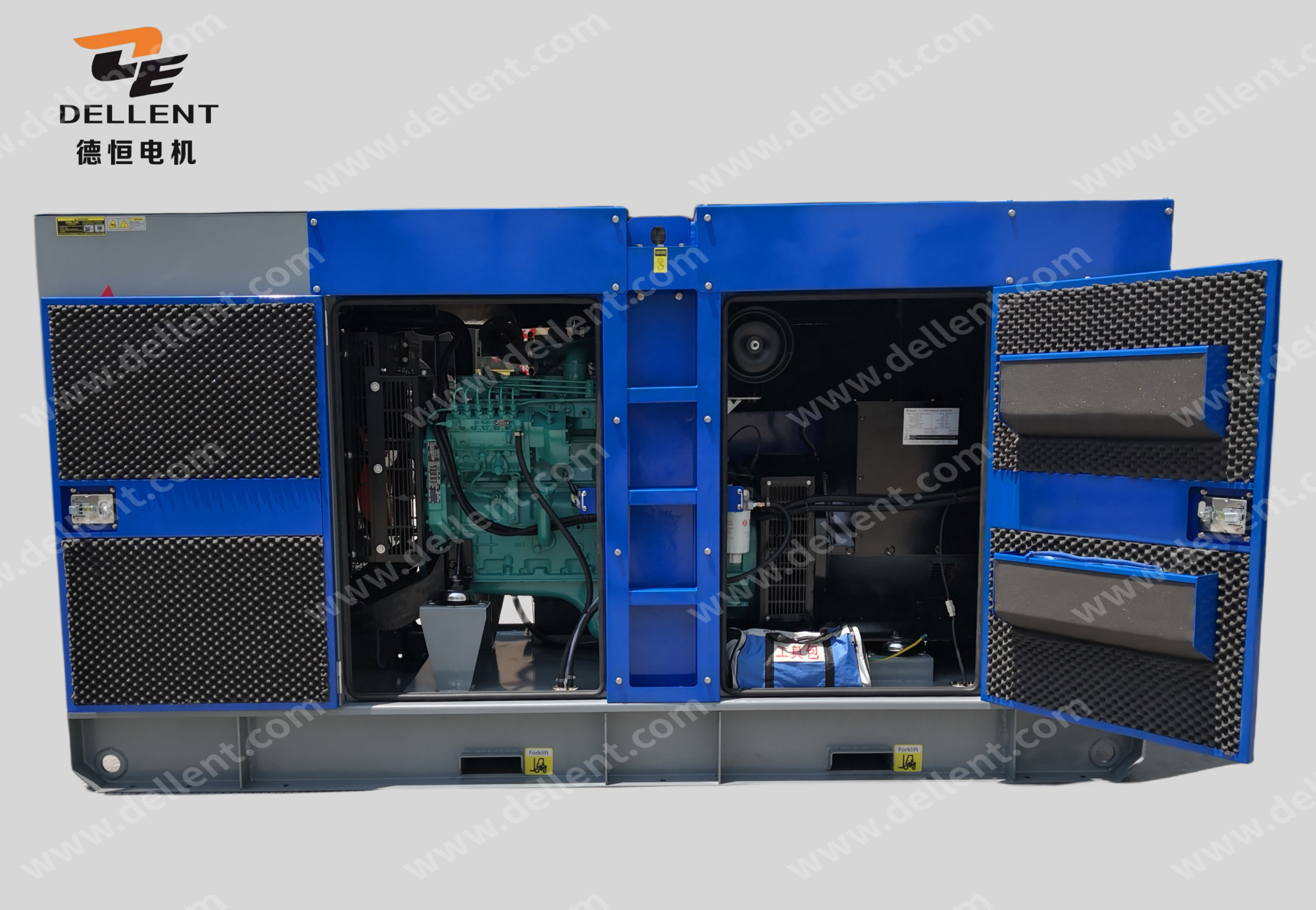

68kva Isuzu Generator Set 4BG1-Z Soundproof 3 Phase Alternator

  • 68kva Isuzu Generator Set 4BG1-Z Soundproof 3 Phase Alternator
Place of Origin CHINA
Brand Name DELLENT-ISUZU
Certification CE ISO
Model Number DE-IS74
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Isuzu Generator Set Brand ISUZU
Cooling System Water Cooling Frequency 60HZ
Alternator Tamford/ Leroy Somer/ Mecc Alte Controller Model Deepsea/ ComAp/Smartgen
Phase Three Phase Type Diesel Generator
Controller Smartgen DSE Engine Model 4BG1-Z
Prime Power 68kVA/54kW Standby Power 74kVA/59kW
Highlight

68kva Isuzu Generator Set

,

Isuzu Generator Set 4BG1-Z

,

Soundproof 3 Phase Alternator
Leave a Message
Product Description
 Light:

Commercial ISUZU 68kVA Generator

,4BG1-Z

 Engine Diesel  Generator

,

CE ISUZU 68kVA Generator ,60HZ

Ⅰ.PRODUCT DESCRIPTION

Product Introduce:
Our Isuzu engine diesel generator have all series from 20kva to 106kvao meet your specific power needs.

We also prioritize ease of use and maintenance for our customers. Our generators are designed with a user-friendly interface and easy access to key components for maintenance and repairs. Regular maintenance is essential for the longevity and optimal performance of your generator, and our team can provide support and guidance for creating a maintenance schedule that suits your specific needs.


Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Isuzu diesel generator :
Isuzu diesel generator have
  1. a sturdy housing；

    Longer lifespan；

  2. Lower maintenance costs；
  3. Complete Isuzu diesel generator which canopy adopts rainproof and corrosion-resistant electrostatic powder coating. After high-temperature baking, it is leveled and solidified to form a dense protective coating, which is both corrosion-resistant and wear-resistant.

Product parameters:

Specification:

Generator Set Specification
Model DE-IS74
Max. Power kVA 74
kW 59
Rate Power kVA 68
kW 54
Frequency Hz 60
Rate Voltage V 400/230
Rate Current A 90.2
Fuel Tank Capacity L 120
Dimension For Open-type Genset mm 1850 X 850 X 1210
Weight For Open-type Genset kg 960
Dimension For Soundproof Genset mm 2400 X 1020 X 1300
Weight For Soundproof Generator kg 1050
Noise Level for Soundproof Generator at 7M dBA 72
Battery One of Free Maintenance Battery


Technical Data of ISUZU Diesel Engine:



Engine Specification
Engine Manufacturer Deutz (Dalian) Engine Co., Ltd.
Engine Brand Deutz
Engine Model 4BG1-Z
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 65
Displacement L 4.3
Compression Ratio 17.5 : 1
Starting Voltage V 12
Bore mm 105
Stroke mm 125
Lubrication Oil Capacity L N.A.
Intake Air Flow M3/Min N.A.
Fuel Consumption at 100% Load L/H 14.92771084
Control Panel Specification:
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 125
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

68kva Isuzu Generator Set 4BG1-Z Soundproof 3 Phase Alternator 0

Ⅲ. QUALIFICATION CENTIFICATE:68kva Isuzu Generator Set 4BG1-Z Soundproof 3 Phase Alternator 1

Ⅳ. FACTORY INTERIOR:

68kva Isuzu Generator Set 4BG1-Z Soundproof 3 Phase Alternator 2



If you need ISUZU generator with other models technical data, kindly contact us for catalogues!
