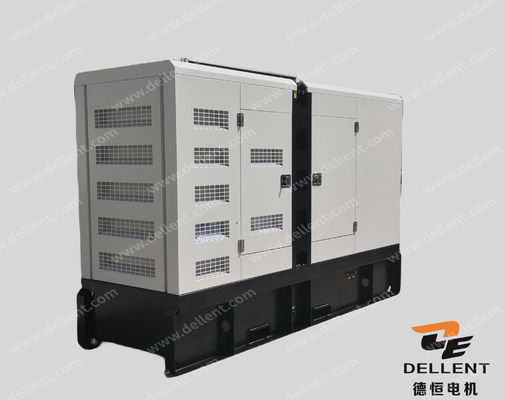

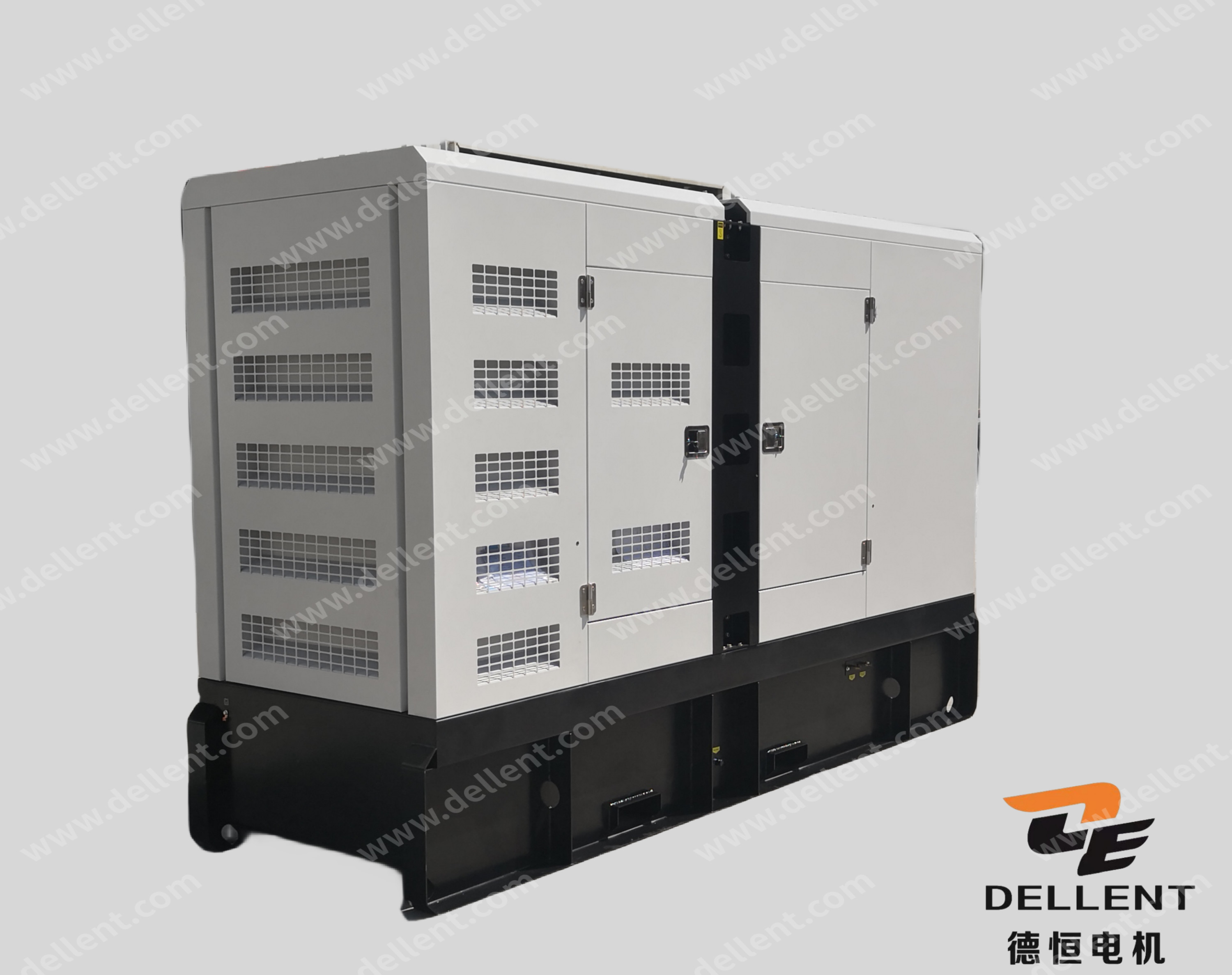

100kVA 60Hz 80kW Diesel Generator Isuzu 3 Phase With 6BG1-Z1 Engine

  • 100kVA 60Hz 80kW Diesel Generator Isuzu 3 Phase With 6BG1-Z1 Engine
Place of Origin CHINA
Brand Name DELLENT-ISUZU
Certification CE ISO
Model Number DE-IS110
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 80kW Diesel Generator Isuzu Cooling System Water Cooling
Frequency 60HZ Alternator Tamford/ Leroy Somer/ Mecc Alte
Controller Model Deepsea/ ComAp/Smartgen Phase Three Phase
Type Diesel Generator Controller Smartgen DSE
Engine Model 6BG1-Z1 Prime Power 100kVA/80kW
Standby Power 110kVA/88kW
Highlight

80 kw 3 phase generator

,

80kW Diesel Generator Isuzu
Leave a Message
Product Description

Ⅰ.PRODUCT DESCRIPTION

100kVA 80kW 60Hz Isuzu Diesel Generator With 6BG1-Z1 Engine
Product Introduce:
Looking for reliable and high-quality diesel generators? Look no further than our Isuzu diesel generator series. We offer a range of models including 20kva to 106kva.to meet your specific power needs.

Our Isuzu diesel generators are known for their durability, fuel efficiency, and low maintenance requirements. With Isuzu engines at their core, these generators offer reliable power output that can be trusted for a range of applications. From backup power for homes and businesses to powering construction sites and events, our Isuzu diesel generators deliver the power you need when you need it.

Advantage of our Isuzu diesel generator :
Isuzu diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.
100kVA 60Hz 80kW Diesel Generator Isuzu 3 Phase With 6BG1-Z1 Engine 0100kVA 60Hz 80kW Diesel Generator Isuzu 3 Phase With 6BG1-Z1 Engine 1

Product parameters:

Specification:

Model DE-IS110
Max. Power kVA 110
kW 88
Rate Power kVA 100
kW 80
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 262.4

Technical Data of ISUZU Diesel Engine:



Engine Manufacturer Isuzu Engine Co., Ltd.
Engine Brand Isuzu
Engine Model 6BG1-Z1
No. of Cylinder 6 Cylinder in line
Aspiration   Turbocharged
Governor Mechanical
Engine Max. Output Power kW 105
Displacement L 5.9
Starting Voltage V 24
Bore mm 102
Stroke mm 118
Lubrication Oil Capacity L N.A.
Control Panel Specification:
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 80
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

100kVA 60Hz 80kW Diesel Generator Isuzu 3 Phase With 6BG1-Z1 Engine 2

Ⅲ. QUALIFICATION CENTIFICATE:100kVA 60Hz 80kW Diesel Generator Isuzu 3 Phase With 6BG1-Z1 Engine 3

Ⅳ. FACTORY INTERIOR:

100kVA 60Hz 80kW Diesel Generator Isuzu 3 Phase With 6BG1-Z1 Engine 4



If you need ISUZU generator with other models technical data, kindly contact us for catalogues!
