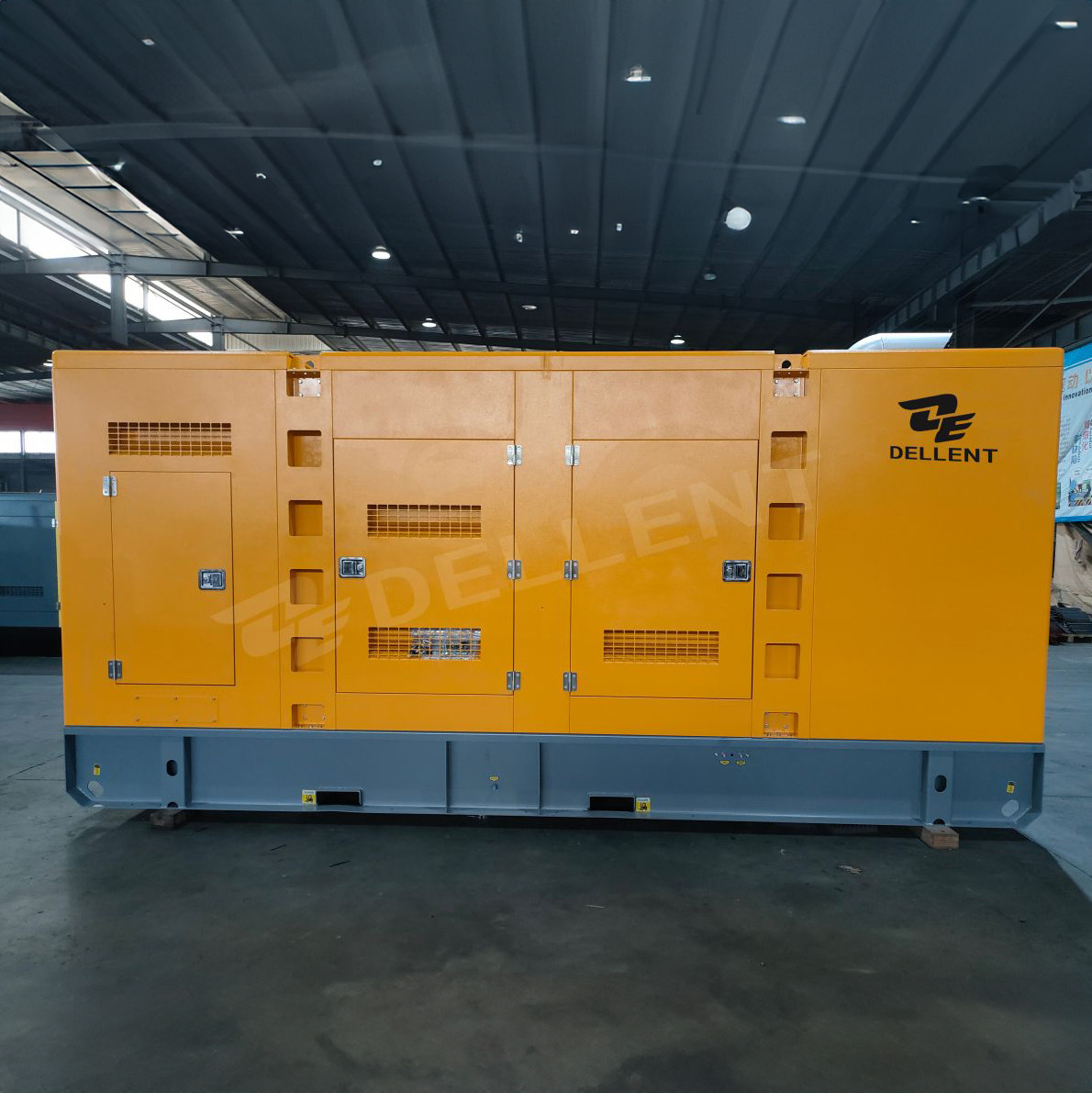

DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set

  • DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-SC853
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name SDEC Diesel Generator Engine Model 6KTAA25-G32
Frequency 50Hz Engine Brand SDEC
No. Of Cylinder 6 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Smartgen Prime Power 620kW/775kVA
Standby Power 682kW/853kVA
Leave a Message
Product Description

DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set

Ⅰ. PRODUCT DESCRIPTION



DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set 0

682kWDiesel Generator Powered by SDEC Diesel Engine:

Model DE-SC853
Max. Power kVA 853
kW 682
Rate Power kVA 775
kW 620
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 1398.3

SDEC Diesel Engine:

Engine Specification
Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model 6KTAA25-G32
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged and Aftercooled
Governor Electric
Engine Max. Output Power kW 754
Displacement L 25.2
Starting Voltage V 24
Bore mm 170
Stroke mm 185
Lubrication Oil Capacity L 75/45
Compression Ratio 14.5:1
Intake Air Flow M3/Min 35

Specification of Control Panel:

Control Panel Specification
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity A 1250
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with DELLENT Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set 1Ⅲ. QUALIFICATION CENTIFICATE:

DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set 2

Ⅳ. FACTORY INTERIOR:

DELLENT 682KW rated power silent of 6KTAA25-G32 diesel generator set 3

-. The engine performance is as per GB/T2820.
-. Ratings are based on GB/T1147.1.

---Prime power is available for an unlimited number of hours per year in a variable load application. The permissible average power output over 24 hours of operation shall not exceed 80% of the prime power rating.

---Standby power is available in the event of a utility power outage or under test conditions for up to 200 hours of operation per year. The permissible average power output over 24 hours of operation shall not exceed 80% of the standby power rating.
