Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator

  • Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-SC138SC
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Three Phase SDEC Diesel Generator Engine Model SC4H180D2
Frequency 50Hz Engine Brand SDEC
No. Of Cylinder 4 Cylinder In Line Rated Speed 1500rpm
Voltage 400V/230V Warranty 12 Months
Controller Automatic Start/Stop Prime Power 100kW/125kVA
Standby Power 110kW/138kVA Alternator Type Brushless
Highlight

Three Phase SDEC Diesel Generator

,

SDEC Diesel Generator 138kVA

,

Standby Power Diesel Generator Three Phase
Leave a Message
Product Description

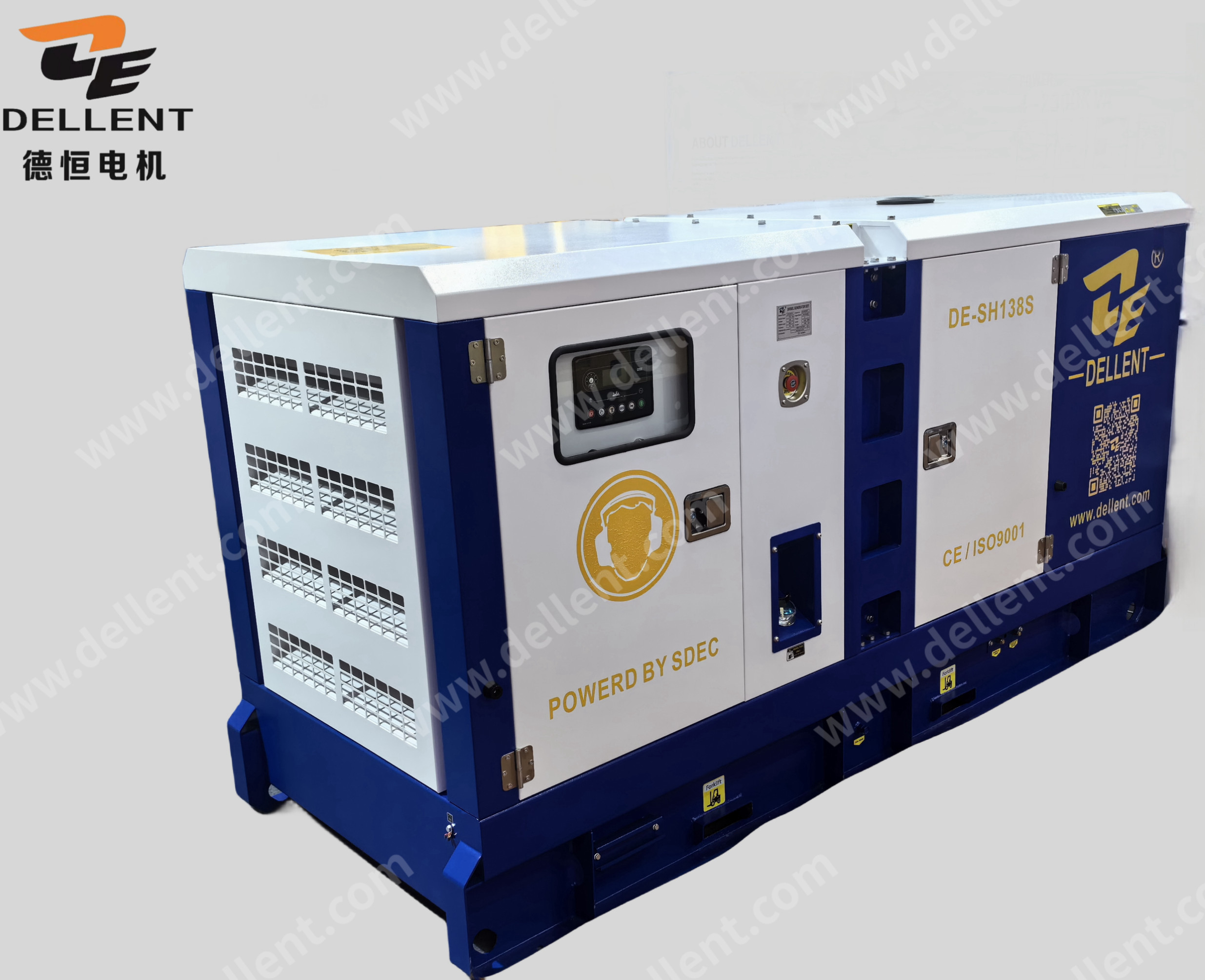

Three Phase SDEC Engine 138kVA Standby Power Diesel Generator

Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator 0

Ⅰ.PRODUCT DESCRIPTION

138kVA Standby Power SDEC Genset Soundproof Engine By 4 Cylinder In Line.Dellent Power supply the standby power 138kVA water cooled diesel generator with SDEC brand diesel engine model SC4H180D2. The water cooled diesel generator with rated output 125kVA /100kW, standby power138kVA /110kW.



138kVA Diesel Generator Powered by SDEC Diesel Engine:

Model DE-SC138SC
Prime Power kVA 125
kW 100
Standby Power kVA 138
kW 110
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 199.19

Specification of the Diesel Engine:

Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model SC4H180D2
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 132
Displacement L 4.300
Starting Voltage V 400
Bore mm 105
Stroke mm 124

Specification of Automatic Control Panel:

Controller Brand ComAp
Breaker Brand Delixi
Breaker Capacity A 63
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with DELLENT Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator 1

Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator 2

Ⅱ. Why Choose Us:

Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator 3

Ⅲ. QUALIFICATION CENTIFICATE:

Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator 4

Ⅳ. FACTORY INTERIOR:

Three Phase SDEC Diesel Generator 138kVA Standby Power Diesel Generator 5

1.When diesel generators are not used for a long time, regular maintenance and inspection should be carried out to ensure their normal operation;

2: Diesel generators should use dry air to avoid malfunctions caused by high humidity;

3: Diesel generators should avoid long-term low load operation to avoid affecting the performance of the diesel engine;

4: Diesel generators should be avoided in high-altitude areas to avoid affecting the performance of the diesel engine;
