Water Cooling AC Three Phase Diesel Generator / 450kW Diesel Generator
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELLENT- SDEC |
| Certification | CE ISO |
| Model Number | DE-SC619 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1*20GP |
| Price | USD22000-26000 |
| Packaging Details | PLASTIC WRAP |
| Delivery Time | 30 DAYS FROM DEPOSIT RECEIVED |
| Supply Ability | 500 PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Three Phase Diesel Generator | Engine Type | SC27G755D2 |
|---|---|---|---|
| Prime Power | 563kVA / 450kW | Standby Power | 619kVA/495kW |
| Voltage | 400V/230V | No. Of Cylinder | 12 Cylinder V Ttyp |
| Rated Speed | 1500rpm | Controller | Deepsea/Smartgen/ ComAp |
| Frequency | 50HZ | ||
| Highlight | Water Cooling AC Diesel Generator,Three Phase Diesel Generator 450kW,450kW Diesel Generator |
||
Product Description

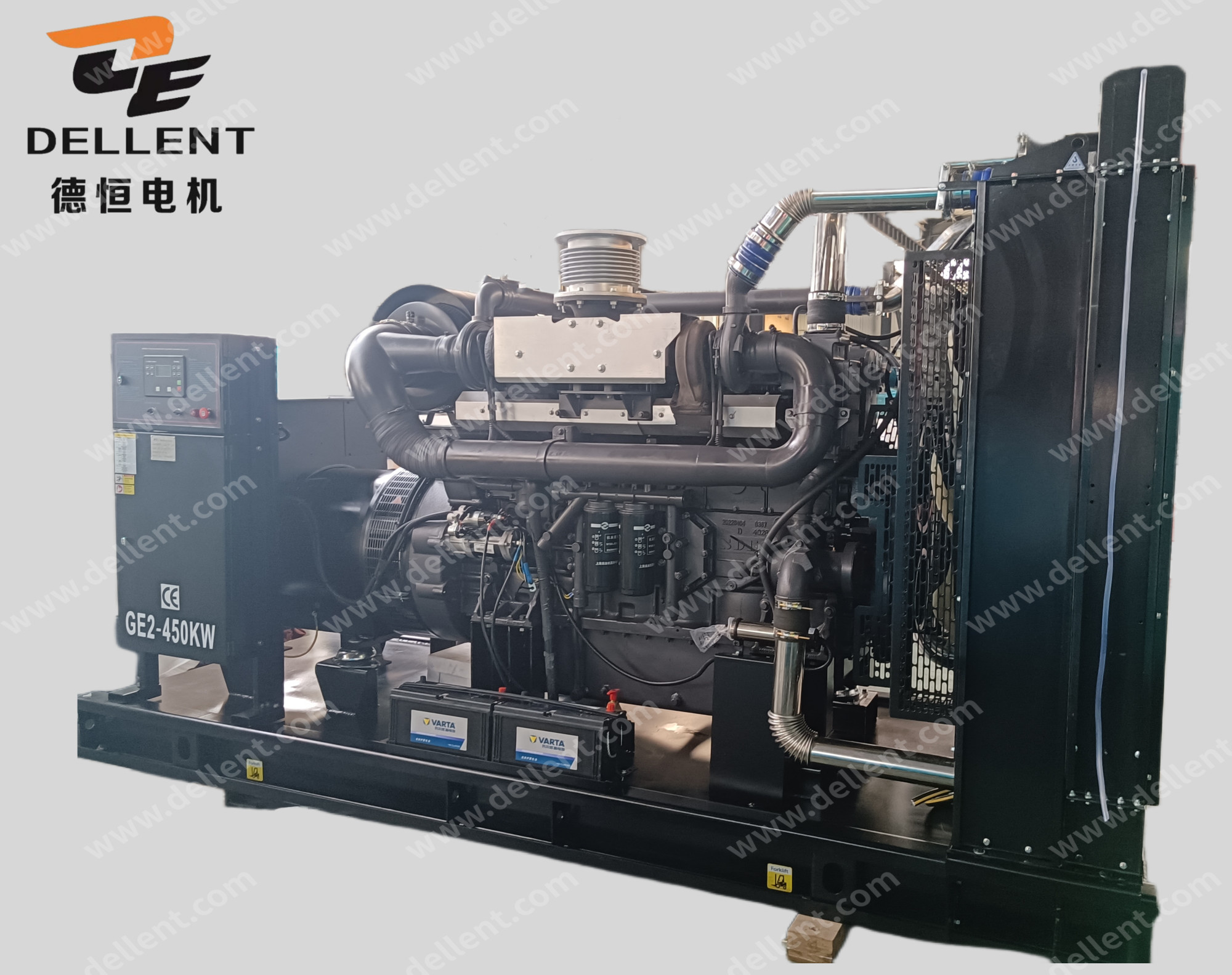

450kW SDEC Diesel Generator
SDEC continuous diesel generator
563kVA Three Phase Diesel Generator
PRODUCT DESCRIPTION
Three Phase Diesel Generator 450kW Drived by Chinese Diesel Engine for Continue Working
Prime Output is available for an unlimited number of hours per year in a variable load application. The permissible average power output over 24 hours of operation shall not exceed 80% of the prime power rating.
Standby Output is available in the event of a utility power outage or under test conditions for up to 200 hours of operation per year. The permissible average power output over 24 hours of operation shall not exceed 80% of the standby power rating.
Technical Data of 450kW Three Phase Diesel Generator:
| Model | DE-SC619 | |
| Max. Power | kVA | 619.0 |
| kW | 495.0 | |
| Rate Power | kVA | 563.0 |
| kW | 450.0 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 811.9 |
| Dimension For Open-type Genset | mm | 3600 X 1800 X 2150 |
| Weight For Open-type Genset | kg | 4400 |
| Dimension For Soundproof Genset | mm | 4700 X 1900 X 2300 |
| Weight For Soundproof Generator | kg | 5650 |
| Noise Level at 7 Meters | dBA | 75 |
| Fuel Tank Capacity | Litres | 700 |
| Battery | Four of 150A Free Maintenance Battery | |
The SDEC supply the SC series for output rated 10kVA to rated 1250kVA diesel generator, also supply the 4H, 6H, 6D and 6E series diesel engine for 25kVA to 413kVA SDEC diesel generator. The diesel engine with the emission of EURO Stage II standard. The diesel engines are widely used for the diesel generator, construction machinery, trucks, boats and agricultural machinery.
Technical Data of SDEC Diesel Engine:
| Engine Manufacturer | Shanghai Diesel Engine Co., Ltd. | |
| Engine Brand | SDEC | |
| Engine Model | SC27G755D2 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 555 |
| Displacement | L | 26.600 |
| Starting Voltage | V | 24 |
| Bore | mm | 135 |
| Stroke | mm | 155 |
| Lubrication Oil Capacity | L | 65 |
| Compression Ratio | 16 : 1 | |
| Intake Air Flow | M3/Min | 36 |
| Fuel Consumption at 100% Load | L/H | 126.0 |
Dellent factory supply the open-type diesel generator, soundproof diesel generator and trailer generator set for optional.
The 450kW three phase diesel generator set used the Dellent brushless alternator model DE354G450. The alternator with automatic voltage regulation by AVR model SX440. The insulation of the alternator with grade H. And the alternator produced according to GB755, BS5000, VDE0530, NEMA MG1-22, IEC-34, CSA C22-100 and AS1359 standard.
Technical Data of Hosem Alternator:
| Alternator Manufacturer | Fuan Dellent Electric & Machinery Co., Ltd. | |
| Alternator Model | DE354G450 | |
| Alternator Brand | Dellent | |
| Rate Output | kVA | 563 |
| Frequency | Hz | 50Hz |
| Current | A | 811.2 |
| Insulation | Class H | |
| Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Working Temperature without Output Decrease | ≤1000m | |
| Phase | 3 Phase | |
| Temperature Rise | 125 Degree Celsius | |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Dellent Brushless alternator for optional | |
Technical Data of Control Panel of Diesel Generator:
| Controller Brand | ComAp | |
| Breaker Brand | Delixi | |
| Breaker Capacity | A | 1250 |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| Mains Monitor | Supply with DELLENT Function | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
FAQ:
Q: What the supply range of SDEC Diesel Generator?
A: The supply range from rated 10kVA to rated 1250kVA with 50Hz, 60Hz.
Q: What the MOQ?
A: 1 *20gp container.
Q: What the payment term?
A: 30% of total amount paid by T/T for deposit, and 70% of total amount paid before shipment. Or the L/C payment.
Q: What the delivery time?
A: 30 Days after 30% deposit received.
Q: Which seaport you can ship the diesel generator to oversea country?
A: We can ship the diesel generator from Fuzhou Port, China. And Fuzhou port is a international seaport in China.
Q: What kind of the trade term you can offer?
A: We can offer with FOB, CNF, CIF or CIP.
Q: Do you have other voltage for optional?
A: Yes, we can customized made from 110V to 690V for client's optional.
Q: How many kinds of the diesel generator you have for optional?
A: We have open-type, soundproof type, waterproof type and trailer type diesel generator for optional.
Q: Does your generator have global warranty?
A: Yes. Gensets powered by global brand engine which with the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.If you use the Chinese brand diesel engine and alternator, we will undertake the warranty, and during the warranty period, if there is any quality problem, we will supply the spare parts to replacement without charges. and the courier charges by air of spare parts will be paid by us.
Q: Can you customized made the diesel generator?
A: Yes. Our generators can be customized depending on customers' detailed requirements. We can supply diesel generators for rental business, home use, inudstrial projects, army projects, power station, etc. The diesel generators we supply are suitable for indoor and outdoor use, lower and high temperature environment.
