1500rpm SDEC Genset 220 kva Diesel Generator Soundproof Engine With 6 Cylinder In Line

  • 1500rpm SDEC Genset 220 kva Diesel Generator Soundproof Engine With 6 Cylinder In Line
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-SC220
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engine Model 6DTAA8.9-G21 Frequency 50Hz
Engine Brand SDEC No. Of Cylinder 6 Cylinder In Line
Rated Speed 1500rpm Voltage 400V/230V
Warranty 12 Months Controller Smartgen
Prime Power 160kW/200kVA Standby Power 176kW/220kVA
Name SDEC Diesel Generator
Highlight

1500rpm SDEC Genset

,

SDEC Genset 220 Kva

,

220 kva Diesel Generator Soundproof
Leave a Message
Product Description

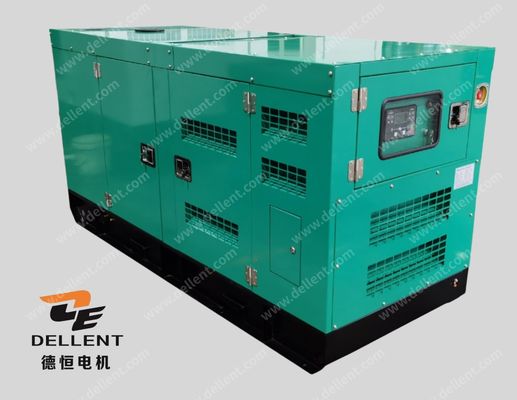

220kva Standby Power SDEC Genset Soundproof Engine By 6 Cylinder In Line

Ⅰ.PRODUCT DESCRIPTION

220kva Standby Power SDEC Genset Soundproof Engine By 6 Cylinder In Line

Dellent Power supply the standby power 220kVA water cooled diesel generator with SDEC brand diesel engine model 6DTAA8.9-G21. The water cooled diesel generator with rated output 200kVA / 160kW, standby power220kVA / 176kW.

1500rpm SDEC Genset 220 kva Diesel Generator Soundproof Engine With 6 Cylinder In Line 0

1.Manufacured strictly according to ISO9001 internatioal quality management system.

2.Set mounted automatic control panel, with Smartgen or Deepsea controller brand for automatic start & stop.

3.Big enough free maintenance battery, world famous brand.

220kVA Diesel Generator Powered by SDEC Diesel Engine:

Model DE-SC220
Standby Power kVA 220
kW 176
Prime Power kVA 200
kW 160
Frequency Hz 50
Output Voltage V 400/230
Oil Consumption L/H 0.054

SDEC Diesel Engine:

Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand Shangchai
Engine Type 6DTAA8.9-G21
No.of Cylinder 6 Cylinder in line
Bore mm 135
Stroke mm 150
Displacement L 12.88
Aspiration Turbocharged
Rate Speed R.P.M. 1500
Governor Electric
Lubrication Oil Capacity L 33
Starting Voltage V 24
Engine Max.Output Power kW 206

Specification of Control Panel:

Control Panel Specification
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity A 125
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with DELLENT Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

1500rpm SDEC Genset 220 kva Diesel Generator Soundproof Engine With 6 Cylinder In Line 1Ⅲ. QUALIFICATION CENTIFICATE:

1500rpm SDEC Genset 220 kva Diesel Generator Soundproof Engine With 6 Cylinder In Line 2

Ⅳ. FACTORY INTERIOR:

1500rpm SDEC Genset 220 kva Diesel Generator Soundproof Engine With 6 Cylinder In Line 3

1.When using diesel generators, appropriate loads should be used according to requirements to avoid overload or underload leading to faults;

2: When diesel generators are not used for a long time, regular maintenance and inspection should be carried out to ensure their normal operation;

3: Diesel generators should use dry air to avoid malfunctions caused by high humidity;
