SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set

  • SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-SC633
Document Product Brochure PDF
Minimum Order Quantity 1*20GP
Price face to face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 30 DAYS FROM DEPOSIT RECEIVED
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name SDEC Diesel Generator Set Frequency 50Hz
Engine Brand SDEC No. Of Cylinder 6 Cylinder L Ttyp
Rated Speed 1500rpm Voltage 400V/230V
Warranty 12 Months Engine Model SC25G690D2
Prime Power 450kVA Standby Power 500kVA
Leave a Message
Product Description

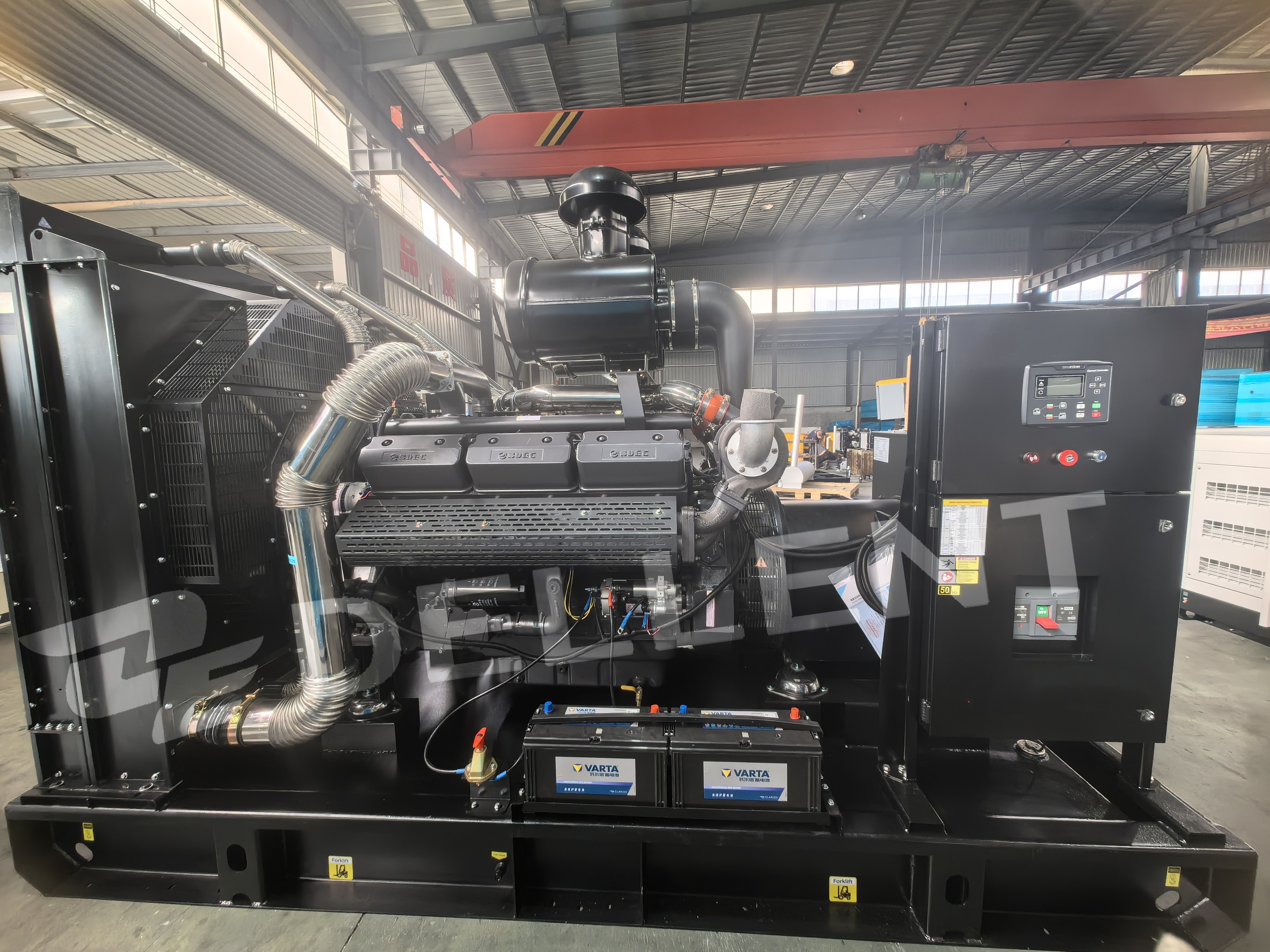

SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set

Ⅰ. PRODUCT DESCRIPTION

SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set

SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set 0

Specification:

Model DE-SC633
Max. Power kVA 500
kW 400
Rate Power kVA 450
kW 360
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 811.9

Specification of the Diesel Engine:

Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model 6KTAA25-G35
No. of Cylinder 6 Cylinder L Ttyp
Aspiration Turbocharged & Aftercooled
Governor ECU
Engine Max. Output Power kW 572
Displacement L 25.8
Compression Ratio 16:01
Starting Voltage V 24
Bore mm 170
Stroke mm 185
Lubrication Oil Capacity L 76
Intake Air Flow L/S N.A.
Fuel Consumption at 100% Load L/H 103.6

Ⅱ. Why Choose Us:

SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set 1Ⅲ. QUALIFICATION CENTIFICATE:

SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set 2

Ⅳ. FACTORY INTERIOR:

SDEC Diesel Generator 50hz 450kVA Rated Power Generator Set 3



Our company is located in Fu'an, which is known as the City of Motors. Our company was established in 2001. We have a deep manufacturing foundation and good quality guarantee.Compared with other factories, we have this differents: Firstly, for the silent shell of the unit, we use 2mm cold-rolled plates, while other factories mainly use 1.8mm hot-rolled plates. Secondly, we use 2.5mm hot-rolled plate for the chassis fuel tank.Thirdly,the hinges, door locks and some standard parts are all made of 304 stainless steel and will not rust and our factory has a special production line for plastic spraying, so you don’t have to worry about uneven spraying.
