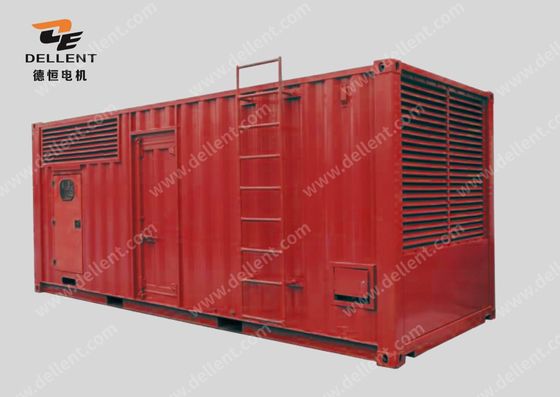

1250kVA Perkins Diesel Generator 1000 kW Perkins 4012-46TWG2A For Outdoor

  • 1250kVA Perkins Diesel Generator 1000 kW Perkins 4012-46TWG2A For Outdoor
Place of Origin CHINA
Brand Name DELLENT-PERKINS
Certification CE ISO
Model Number DE-P1375
Document Product Brochure PDF
Minimum Order Quantity 1PC
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 1250 Kva Perkins Generator Cooling System Water Cooling
Frequency 50HZ Alternator Alternator
Phase Three Phase Brand Perkins
Type Diesel Generator Controller Smartgen DSE
Engine Model 4012-46TWG2A Prime Power 1250kVA/1000kW
Standby Power 1375kVA/1100kW
Highlight

1250 Kva Perkins Generator

,

Perkins Diesel Generator 1000 KW

,

Perkins 1250 Kva Generator
Leave a Message
Product Description

1250kVA 1000kW With 4012-46TWG2A Of Perkins Generator Set For Outdoor





High Light:

Commercial Perkins 1250kVA Generator

,

4012-46TWG2A Engine Diesel  Generator

,

CE Perkins 1250kva Generator ,50HZ

Ⅰ.PRODUCT DESCRIPTION

1250kVA Industrial 1000kW Perkins Generator Set For Outdoor
Product Introduce:Dellent Power Perkins Series generator powered by the original Perkins engine, it enjoys high stability, reliability, durability, and long life with a wide range of power output. It is widely used in the area of the port, railway, industrial, and mining.

Product parameters:

Specification:

Model DE-P1375
Max. Power kVA 1375
kW 1100
Rate Power kVA 1250
kW 1000
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 1804.3
Fuel Tank Capacity L 1000
Dimension For Open-type Genset mm 5220 X 2130 X 2600
Weight For Open-type Genset kg 8250
Dimension For Soundproof Genset mm 12192 X 2438 X 2896
Weight For Soundproof Generator kg 12300
Noise Level for Soundproof Generator at 7M dBA 85
Battery for Starting Four of Free Maintenance Battery

Specification of Perkins Diesel Engine:

Engine Manufacturer Perkins
Engine Brand Perkins
Engine Model 4012-46TWG2A
No. of Cylinder 12 Cylinder V type
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 1217
Displacement L 45.8
Compression Ratio 13.6 : 1
Starting Voltage V 24
Bore mm 160
Stroke mm 190
Lubrication Oil Capacity L 177.6
Intake Air Flow M3/Min 61.2
Fuel Consumption at 100% Load L/H 262

Specification of Control Panel :

Control Panel Specification
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 160
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

1250kVA Perkins Diesel Generator 1000 kW Perkins 4012-46TWG2A For Outdoor 0

Ⅲ. QUALIFICATION CENTIFICATE:1250kVA Perkins Diesel Generator 1000 kW Perkins 4012-46TWG2A For Outdoor 1

Ⅳ. FACTORY INTERIOR:

1250kVA Perkins Diesel Generator 1000 kW Perkins 4012-46TWG2A For Outdoor 2



Advantages:



Reliable Performance: The Perkins engine is known for its reliable performance, making it an ideal choice for powering your generator. With its low fuel consumption and long maintenance intervals, you can rely on this generator to provide stable and uninterrupted power for extended periods.



Quiet Operation: With its advanced noise reduction technology, our generator with Perkins engine operates at low noise levels, making it ideal for use in noise-sensitive environments. This makes it a great choice for residential and commercial use, where noise pollution is a concern.





If you need Perkins generator with other models technical data, kindly contact us for catalogues!
