2506C-E15TAG1 60Hz 550 Kva Perkins Generator Series Three Phase

  • 2506C-E15TAG1 60Hz 550 Kva Perkins Generator Series Three Phase
Place of Origin CHINA
Brand Name DELLENT-PERKINS
Certification CE ISO
Model Number DE-P550
Document Product Brochure PDF
Minimum Order Quantity 1PC
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Perkins Name 550 Kva Perkins Generator Series
Cooling System Water Cooling Frequency 60HZ
Alternator Alternator Phase Three Phase
Type Diesel Generator Controller Smartgen DSE
Prime Power 400kW/500kVA Standby Power 440kW/550kVA
Engine Model 2506C-E15TAG1
Highlight

2506C-E15TAG1

,

550 Kva Perkins Generator Series
Leave a Message
Product Description
High Light:

Commercial Perkins 550kVA Generator

,

2506C-E15TAG1 Engine Diesel  Generator

,

CE Perkins 550kva Generator ,60HZ

Ⅰ. PRODUCT DESCRIPTION

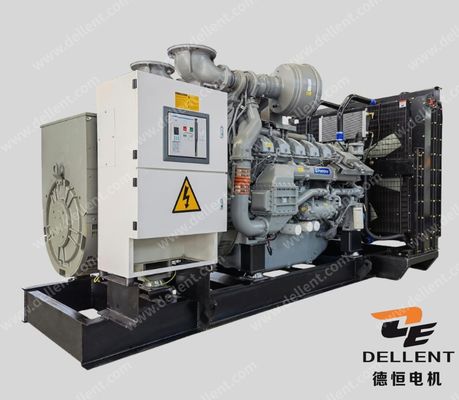

2506C-E15TAG1 60Hz 550kVA Standby Power Perkins Diesel Generator Set
Product Introduce:Dellent Power Perkins Series generator powered by the original Perkins engine, it enjoys high stability, reliability, durability, and long life with a wide range of power output. It is widely used in the area of the port, railway, industrial, and mining.
2506C-E15TAG1 60Hz 550 Kva Perkins Generator Series Three Phase 0

Product parameters:

Specification:

Model DE-P550
Standby Power kVA 550
kW 440
Prime Power kVA 500
kW 400
Frequency Hz 60
Output Voltage V 240
Oil Consumption L/H 0.315303768

Specification of Perkins Diesel Engine:

Engine Model 2506C-E15TAG1
No.of Cylinder 6 Cylinder in line
Bore mm 137
Stroke mm 171
Displacement L 15
Cooling Fan Air Flow m3/min 564
Compress Air Flow m3/min 33
Exhaust Gas Flow m3/min 85
Exhaust Gas Temperature ℃ 540
Lubrication Oil Capacity L 53
Cooling Water Capacity L 58
Starting Voltage V 24
Engine Max.Output Power kW 432

Specification of Alternator:

Alternator Brand Stamford
Rate Output kVA 500
Frequency Hz 60
Altitude M ≤1000
Insulation Class H
Protection Grade IP23
Alternator for choice We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.
Control Panel Model AF500
Controller Deepsea Brand Model DSE7320
Function of control panel Automatic genset start/stop
Automatic battery charger
Emergency stop
AMF (Automatic Mains Fault)
Remote control
Micro-processor based design
LED alarm indication and Sound alarm



Ⅱ. Why Choose Us:

2506C-E15TAG1 60Hz 550 Kva Perkins Generator Series Three Phase 1

Ⅲ. QUALIFICATION CENTIFICATE:2506C-E15TAG1 60Hz 550 Kva Perkins Generator Series Three Phase 2

Ⅳ. FACTORY INTERIOR:

2506C-E15TAG1 60Hz 550 Kva Perkins Generator Series Three Phase 3



If you need Perkins generator with other models technical data, kindly contact us for catalogues!
