Standby Power Perkins Diesel Generator 450kVA 50Hz 2206C-E13TAG3
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELLENT-PERKINS |
| Certification | CE ISO |
| Model Number | DE-P88 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1PC |
| Price | face to face |
| Packaging Details | PLASTIC WRAP |
| Delivery Time | 30 DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Perkins Diesel Generator 450kVA | Brand | Perkins |
|---|---|---|---|
| Cooling System | Water Cooling | Frequency | 50HZ |
| Alternator | Alternator | Phase | Three Phase |
| Type | Diesel Generator | Controller | Smartgen DSE |
| Engine Model | 2206C-E13TAG3 | Prime Power | 320kVA/400kW |
| Standby Power | 360kVA/450kW | ||
| Highlight | Standby Power Perkins Diesel Generator,Perkins Diesel Generator 450kVA,Perkins 2206C-E13TAG3 |
||
Product Description
High Light:
Commercial Perkins 450kVA Generator
,2206C-E13TAG3 Engine Diesel Generator
,CE Perkins 450kva Generator ,50HZ
Ⅰ.PRODUCT DESCRIPTION

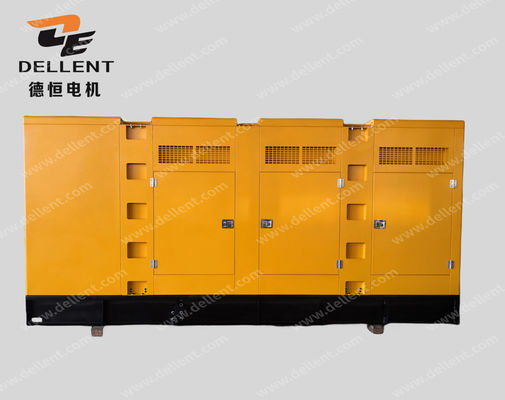

2206C-E13TAG3 50Hz 450kVA Standby Power Perkins Diesel Generator Set
Product Introduce:Dellent Power Perkins Series generator powered by the original Perkins engine, it enjoys high stability, reliability, durability, and long life with a wide range of power output. It is widely used in the area of the port, railway, industrial, and mining.
Product parameters:
Specification:
| Model | DE-P450 | |
| Max. Power | kVA | 450 |
| kW | 360 | |
| Rate Power | kVA | 400 |
| kW | 320 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 577.4 |
| Fuel Tank Capacity | L | 600 |
| Dimension For Open-type Genset | mm | 3500 X 1200 X 1960 |
| Weight For Open-type Genset | kg | 3480 |
| Dimension For Soundproof Genset | mm | 4350 X 1450 X 2180 |
| Weight For Soundproof Generator | kg | 5260 |
| Noise Level for Soundproof Generator at 7M | dBA | 80 |
| Battery for Starting | Two of Free Maintenance Battery |
|
Engine Specification:
| Engine Manufacturer | Perkins Engines Company Limited | |
| Engine Brand | Perkins | |
| Engine Model | 2206C-E13TAG3 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 413 |
| Displacement | L | 12.5 |
| Compression Ratio | 16.3 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 130 |
| Stroke | mm | 157 |
| Lubrication Oil Capacity | L | 38 |
| Intake Air Flow | M3/Min | 12.5 |
| Fuel Consumption at 100% Load | L/H | 85 |
Specification of Control Panel:
| Control Panel Specification | ||
| Controller Brand | Smartgen | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 630 | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
Advantages:
Reliable Performance: The Perkins engine is known for its reliable performance, making it an ideal choice for powering your generator. With its low fuel consumption and long maintenance intervals, you can rely on this generator to provide stable and uninterrupted power for extended periods.
High Efficiency: Our generator with Perkins engine is designed to provide high efficiency and low fuel consumption, which can save you money in the long run. With its advanced control system, this generator can adjust its output according to the load demand, ensuring that it operates at maximum efficiency at all times.
If you need Deutz generator with other models technical data, kindly contact us for catalogues!
