220kVA Perkins Diesel Generator Standby Power 1106A-70TAG4 50Hz

  • 220kVA Perkins Diesel Generator Standby Power 1106A-70TAG4 50Hz
Place of Origin CHINA
Brand Name DELLENT-PERKINS
Certification CE ISO
Model Number DE-P220
Document Product Brochure PDF
Minimum Order Quantity 1PC
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Perkins Diesel Engine Generator Brand Perkins
Cooling System Water Cooling Frequency 50HZ
Alternator Alternator Phase Three Phase
Type Diesel Generator Controller Smartgen DSE
Engine Model 1106A-70TAG4 Prime Power 160kVA/200kW
Standby Power 176kVA/220kW
Highlight

220kVA Perkins Diesel Generator

,

ISO Perkins Diesel Engine Generator

,

Perkins 1106A-70TAG4
Leave a Message
Product Description

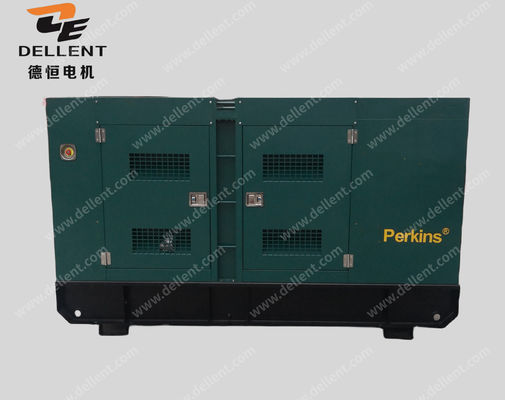

1106A-70TAG4 50Hz 220kVA Standby Power Perkins Diesel Generator Set





High Light:

Commercial Perkins 220kVA Generator

,

1106A-70TAG4 Engine Diesel  Generator

,

CE Perkins 220kva Generator ,50HZ

Ⅰ.PRODUCT DESCRIPTION

1106A-70TAG4 50Hz 220kVA Standby Power Perkins Diesel Generator Set
Product Introduce:Dellent Power Perkins Series generator powered by the original Perkins engine, it enjoys high stability, reliability, durability, and long life with a wide range of power output. It is widely used in the area of the port, railway, industrial, and mining.
220kVA Perkins Diesel Generator Standby Power 1106A-70TAG4 50Hz 0

Product parameters:

Specification:

Model DE-P220
Max. Power kVA 220
kW 176
Rate Power kVA 200
kW 160
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 288.7
Fuel Tank Capacity L 300


Specification of Perkins Diesel Engine:

Engine Manufacturer Perkins
Engine Brand Perkins
Engine Model 1106A-70TAG4
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged and Air to Air Aftercooled
Governor Electric
Engine Max. Output Power kW 196.3
Displacement L 7.0
Compression Ratio 16.0 : 1
Starting Voltage V 12
Bore mm 105
Stroke mm 135
Lubrication Oil Capacity L 16.5
Intake Air Flow M3/Min 9.4
Fuel Consumption at 100% Load L/H 45.8

Specification of Control Panel :

Control Panel Specification
Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 400
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

220kVA Perkins Diesel Generator Standby Power 1106A-70TAG4 50Hz 1

Ⅲ. QUALIFICATION CENTIFICATE:220kVA Perkins Diesel Generator Standby Power 1106A-70TAG4 50Hz 2

Ⅳ. FACTORY INTERIOR:

220kVA Perkins Diesel Generator Standby Power 1106A-70TAG4 50Hz 3



Advantages:



Advanced Safety Features: Our generator is equipped with advanced safety features such as low oil pressure shutdown, high coolant temperature shutdown, and over/under voltage protection. These features ensure that your generator operates safely and protects against damage to critical components.



High Efficiency: Our generator with Perkins engine is designed to provide high efficiency and low fuel consumption, which can save you money in the long run. With its advanced control system, this generator can adjust its output according to the load demand, ensuring that it operates at maximum efficiency at all times.



If you need Perkins generator with other models technical data, kindly contact us for catalogues!
