1250kVA Cummins 1000 Kw Diesel Generator 60Hz Cummins Generator Set

  • 1250kVA Cummins 1000 Kw Diesel Generator 60Hz Cummins Generator Set
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-CC1375
Document Product Brochure PDF
Minimum Order Quantity 1 PC
Price bargain face-to-face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 1 MONTH 600PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Cummins 1000 Kw Diesel Generator Engine Brand Cummins
Engine Model KTA38-G9 Cooling Method Water-Cooling System
Fuel Type Diesel Prime Power 1250kVA/1000kW
Standby Power 1375kVA /1000kW Rated Frequency 60HZ
Speed 1800RPM Warranty 12 Months/1000 Hours
Genset Type Open Type
Highlight

1250 Kva Cummins Generator

,

Cummins 1000 Kw Diesel Generator

,

1250kva Diesel Generator
Leave a Message
Product Description

1250kVA 1000kW 60Hz of Cummins Generator Set



Ⅰ. PRODUCT

 Cummins Engine Generator:



Model DE-CC1375
Standby Power kVA 1250
kW 1000
Prime Power kVA 1125
kW 900
Frequency Hz 60
Output Voltage V 240
Oil Consumption L/H 0.726736734
Dimension For Open-type mm 4250 X 1850 X 2400
Weight For Open-type kg 9650

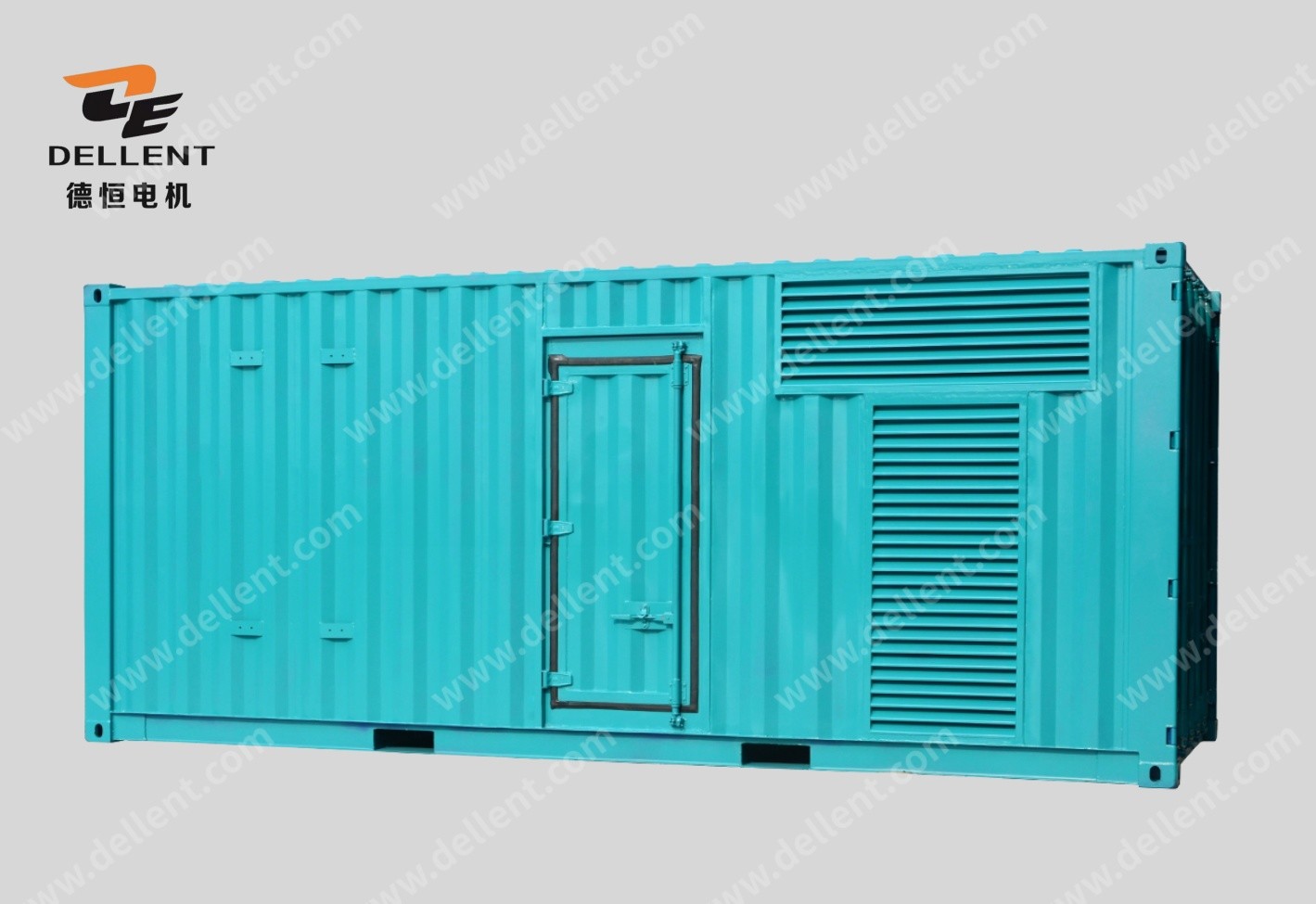

Dimension For Soundproof mm 6058 X 2438 X 2591
Weight For Soundproof kg 11950
Engine Specification
Engine Model KTA38-G9
No.of Cylinder 12 Cylinder V Type
Bore mm 159
Stroke mm 159
Displacement L 37.8
Cooling Fan Air Flow m3/min 2100
Compress Air Flow m3/min 99
Exhaust Gas Flow m3/min 198
Exhaust Gas Temperature ℃ 529
Lubrication Oil Capacity L 135
Cooling Water Capacity L 124
Starting Voltage V 24
Engine Max.Output Power kW 1112
Alternator Model LVI 634 D
Alternator Brand Stamford
Rate Output kVA 1137
Frequency Hz 60
Altitude M ≤1000
Insulation Class H
Protection Grade IP23


Control Panel Specification
Controller Brand Deepsea
Controller Model DSE1620
Breaker Brand Delixi
Breaker Capacity 80A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
