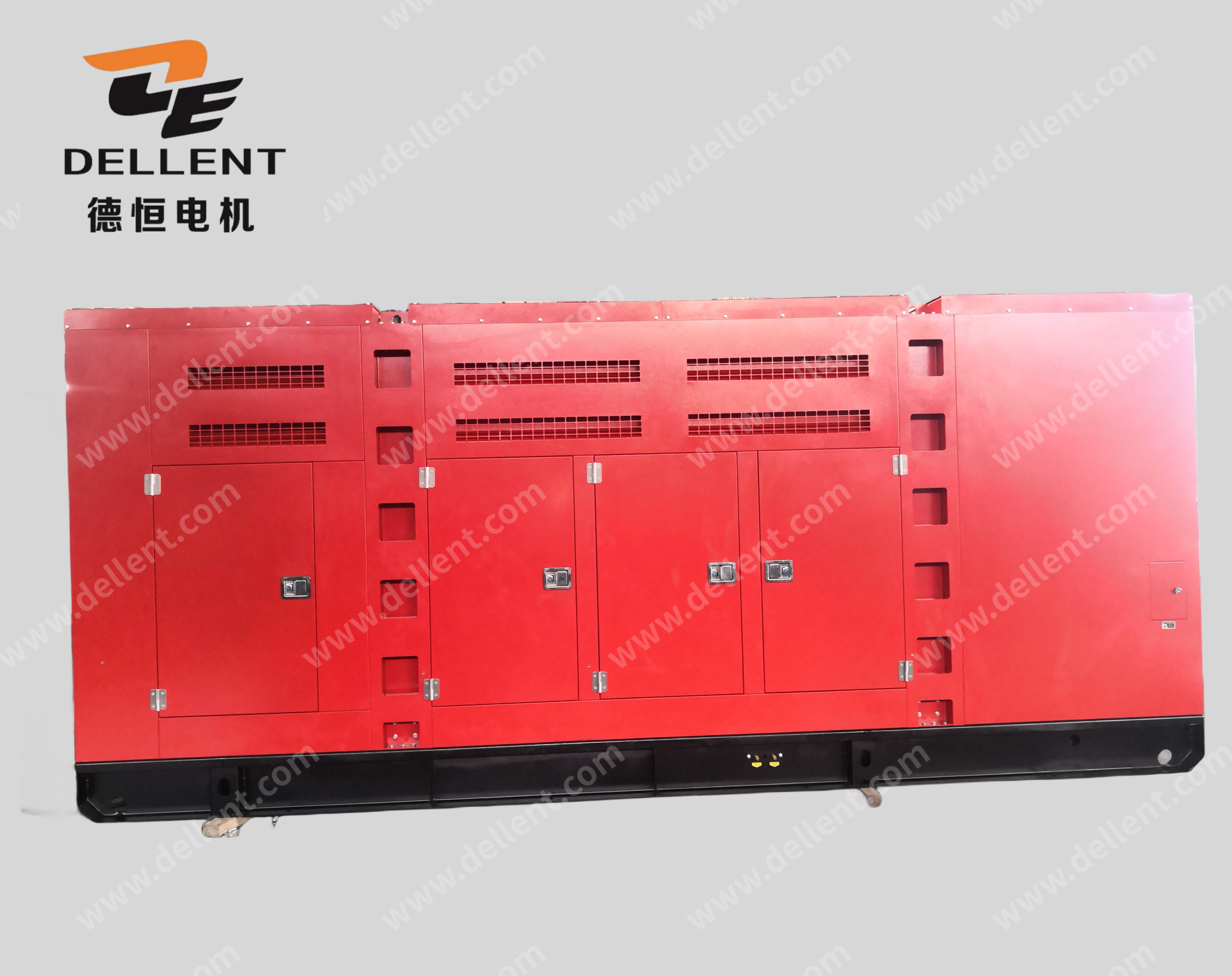

800kW / 1000kva Cummins Diesel Generator 50Hz KTA38-G5 Engine

  • 800kW / 1000kva Cummins Diesel Generator 50Hz KTA38-G5 Engine
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-CC1100
Document Product Brochure PDF
Minimum Order Quantity 1 PC
Price bargain face-to-face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 1 MONTH 600PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engine Brand Cummins Name 1000kva Cummins Diesel Generator
Engine Model KTA38-G5 Cooling Method Water-Cooling System
Fuel Type Diesel Prime Power 1000kVA/800kW
Standby Power 1100kVA /880kW Rated Frequency 50HZ
Speed 1500RPM Warranty 12 Months/1000 Hours
Genset Type Open Type
Highlight

1000kva Cummins Diesel Generator

,

1000kva Cummins Generator

,

Cummins 1000 Kva Diesel Generator
Leave a Message
Product Description

800kW/1000kVA 50Hz Cummins Generator Set Cummins Power Generator With KTA38-G5 Engine



Ⅰ. PRODUCT

 Cummins Engine Generator:

Model DE-CC1100
Max. Power kVA 1100
kW 880
Rate Power kVA 1000
kW 800
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 1443.4
Fuel Tank Capacity L 900
Dimension For Open-type Genset mm 4243 X 1820 X 2500
Weight For Open-type Genset kg 8120
Dimension For Soundproof Genset mm 6058 X 2438 X 2591
Weight For Soundproof Generator kg 10270
Noise Level for Soundproof Generator dBA 80dBA

Cummins Diesel Engine:

Engine Manufacturer Chongqing Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model KTA38-G5
No. of Cylinder 12 Cylinder V Type
Aspiration Turbocharged & Aftercooled
Governor Electric
Engine Max. Output Power kW 970
Displacement L 37.8
Compression Ratio 13.9 : 1
Starting Voltage V 24
Bore mm 159
Stroke mm 159
Lubrication Oil Capacity L 135
Intake Air Flow M3/Min 72.8
Fuel Consumption at 100% Load L/H 209

The Control Panel :

Alternator Brand Stamford
Rate Output kVA 1000
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation MX321
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and DELLENT Brushless alternator for optional
