Three Phase Diesel Generator 150kVA 120kW Cummins Diesel Genset With Soundproof Canopy
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELLENT |
| Certification | CE/ISO9001 |
| Model Number | DE-C165 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 pc |
| Price | bargain face-to-face |
| Packaging Details | PLASTIC WRAP OR PLYWOOD CASE |
| Delivery Time | 20-30 DAYS |
| Supply Ability | 1 MONTH 600PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Cummins Diesel Genset | Engine Brand | Cummins |
|---|---|---|---|
| Engine Model | 6BTAA5.9-G12 | Prime Power | 150kVA 120kW |
| Standby Power | 165kVA 132kW | Frequency | 50Hz |
| Fuel Type | Diesel | Noise Level | 75dBA At 7M |
| Speed | 1500rpm | Warranty | 12 Months/1000 Hours |
| Cooling System | Water-Cooling System | ||
| Highlight | Three Phase Diesel Generator 150kVA,120kW Cummins Diesel Genset,120 kw cummins generator |
||
Product Description

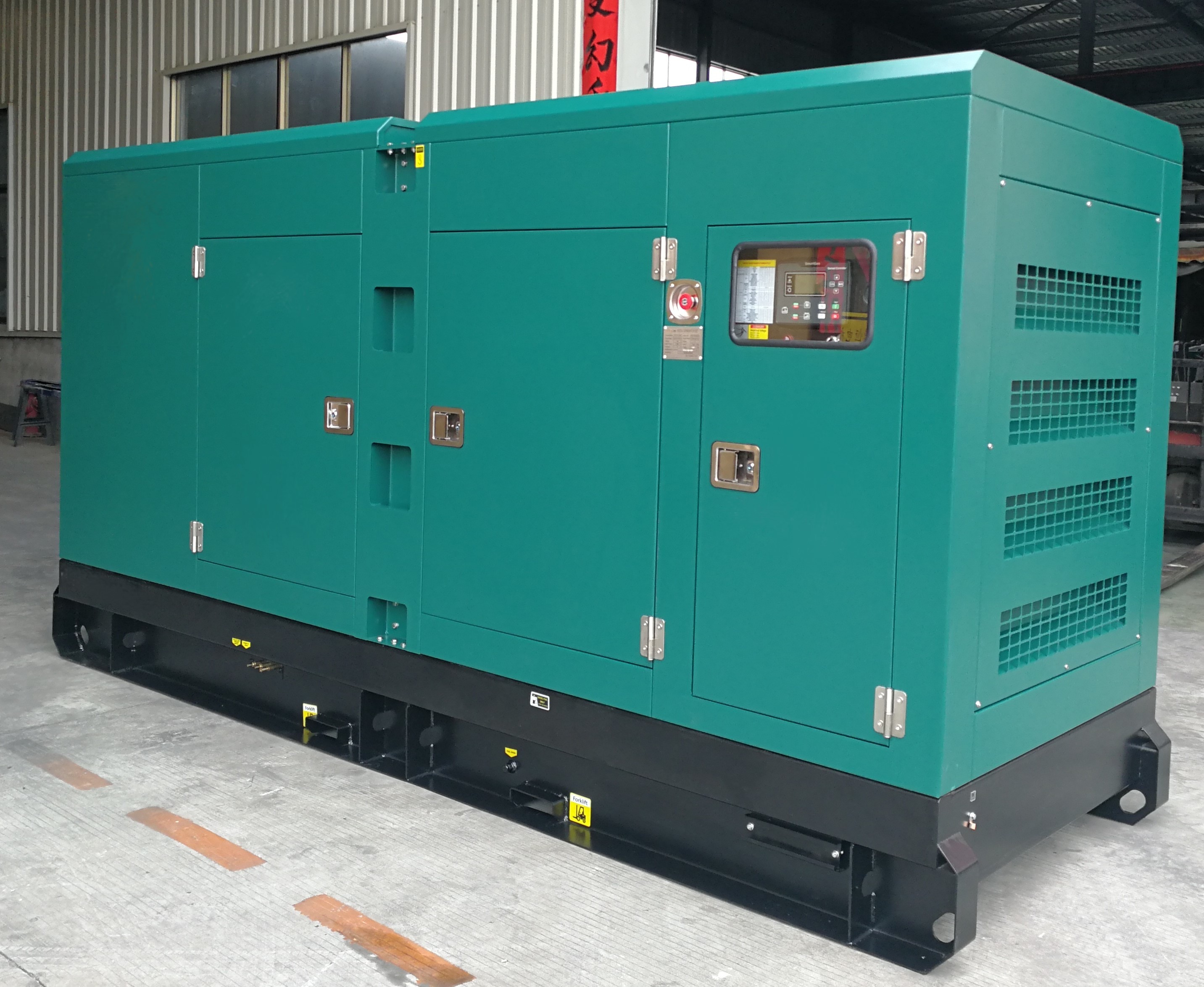

Three Phase 150kVA 120kW Cummins Diesel Genset Equip With Soundproof Canopy
Ⅰ. PRODUCT
| Engine Specification | ||
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Engine Brand | Cummins | |
| Engine Model | 6BTAA5.9-G12 | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocharged and Air to Air Aftercooled | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 154 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | M3/Min | 7.6 |
| Fuel Consumption at 100% Load | L/H | 34 |
| Alternator Specification | ||
| Alternator Manufacturer | Fuan Dellent Electric & Machinery Co., Ltd. | |
| Alternator Brand | DELLENT | |
| Rate Output | kVA | 150 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H | |
| Phase | 3 Phase | |
| Working Temperature without power decrease | ≤40℃ | |
| Working Altitude without power decrease | ≤1000m | |
| Automatic Voltage Regulation | SX440 | |
| Protection Grade | IP23 | |
| Control Panel Specification | ||
| Controller Brand | Deepsea | |
| Controller Model | DSE6120 | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 250 | |
| Battery Charger | Smartgen Model BAC06A | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
