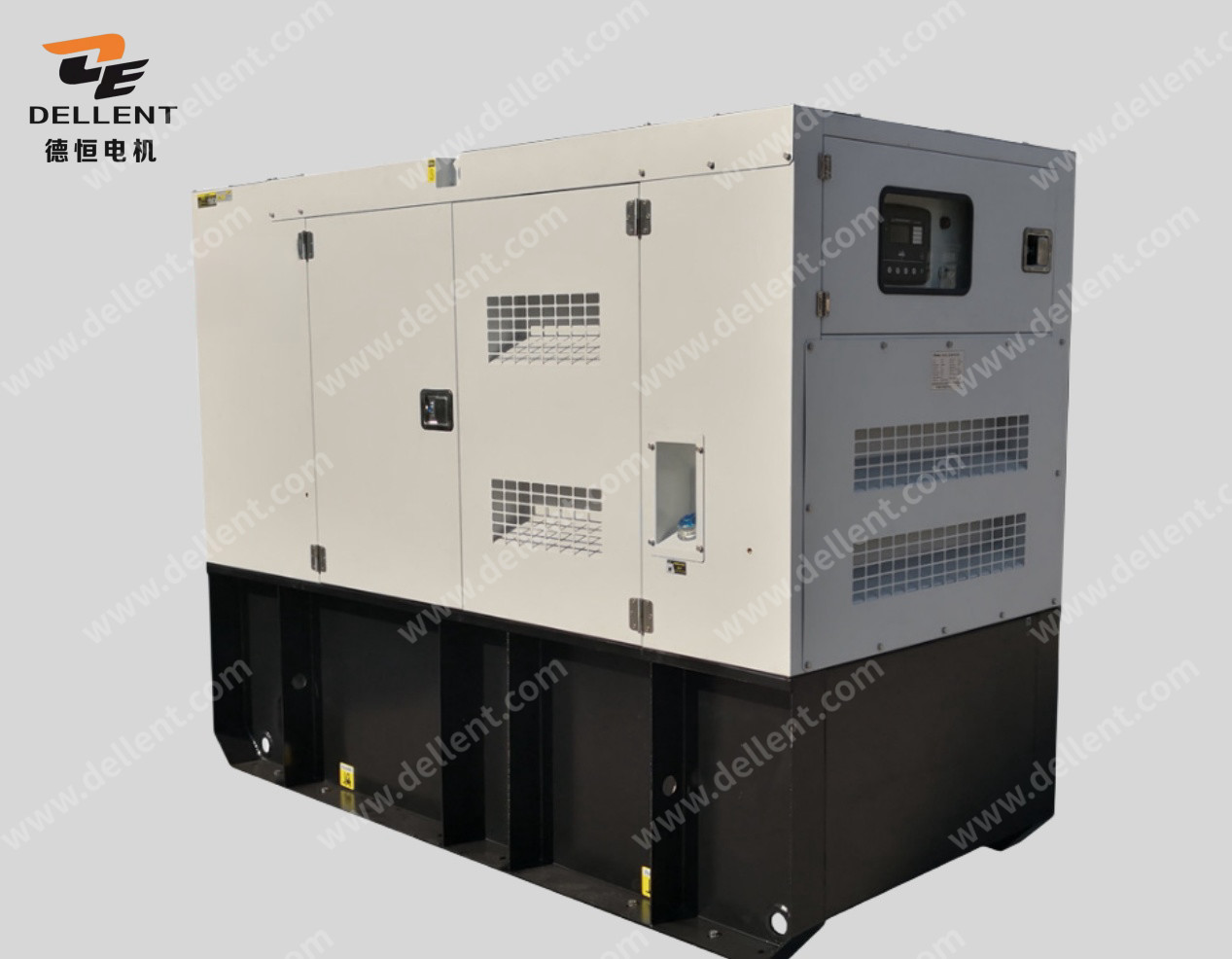

60Hz 280kW 350 Kva Doosan Diesel Generator Set With Smartgen Controller

  • 60Hz 280kW 350 Kva Doosan Diesel Generator Set With Smartgen Controller
Place of Origin CHINA
Brand Name DELLENT-Doosan
Certification CE ISO
Model Number DE-DS350
Document Product Brochure PDF
Minimum Order Quantity 1PC
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 350 Kva Doosan Generator Brand Doosan
Cooling System Water Cooling Frequency 60HZ
Alternator Stamford Phase Three Phase
Type Diesel Generator Controller Smartgen
Engine Model P126TI-II Rate Current 505.2A
Highlight

Doosan Diesel Generator 280kW

,

ISO 280 Kw Diesel Generator

,

350 Kva Doosan Generator
Leave a Message
Product Description

60Hz 280kW 350kVA Doosan Engine Diesel Generator Set





High Light:

Commercial Doosan 350kVA Generator

,P126TI-II

 Engine Diesel  Generator

,

CE Doosan 350kva Generator ,60HZ

Ⅰ. PRODUCT DESCRIPTION

60Hz 280kW 350kVA Doosan Engine Diesel Generator Set
Product Introduce:Dellent Power Doosan Series generator powered by the original Doosan engine, it enjoys high stability, reliability, durability, and long life with a wide range of power output. It is widely used in the area of the port, railway, industrial, and mining.

Product parameters:

Specification of 350kVA Emergency Standby Generator:

Model DE-DS350
Standby Power kVA 385
kW 308
Prime Power kVA 350
kW 280
Frequency Hz 60
Output Voltage V 240
Oil Consumption L/H 0.235056354
Dimension For Open-type mm 3250 X 1100 X 1720
Weight For Open-type kg 2940
Dimension For Soundproof mm 3900 X 1300 X 1900
Weight For Soundproof kg 3200


Specification of Doosan Diesel Engine P126TI-ll:

Engine Manufacturer Doosan Cooperation
Engine Brand Doosan
Engine Model P126TI-II
No. of Cylinder 6 Cylinder inline
Aspiration Turbocharged
Governor Electric.
Engine Max. Output Power kW 298
Displacement L 11.05
Compression Ratio 17.1: 1
Starting Voltage V 24
Bore mm 123
Stroke mm 155
Lubrication Oil Capacity L 23
Intake Air Flow L/S 100
Fuel Consumption at 100% Load L/H 63

Specification of Control Panel :

Specification of Control Panel for 350kVA Emergency Standby Generator:

Controller Brand Smartgen
Controller Model HGM6120
Breaker Brand Delixi
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

60Hz 280kW 350 Kva Doosan Diesel Generator Set With Smartgen Controller 0

Ⅲ. QUALIFICATION CENTIFICATE:60Hz 280kW 350 Kva Doosan Diesel Generator Set With Smartgen Controller 1

Ⅳ. FACTORY INTERIOR:

60Hz 280kW 350 Kva Doosan Diesel Generator Set With Smartgen Controller 2
