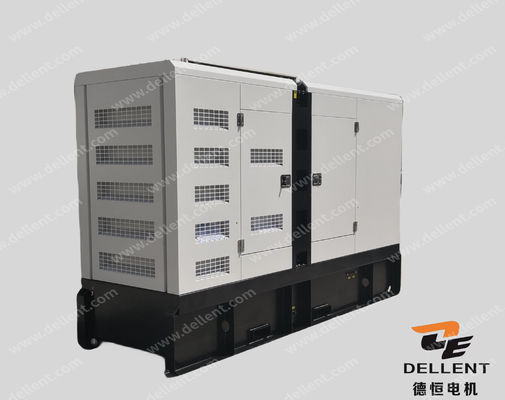

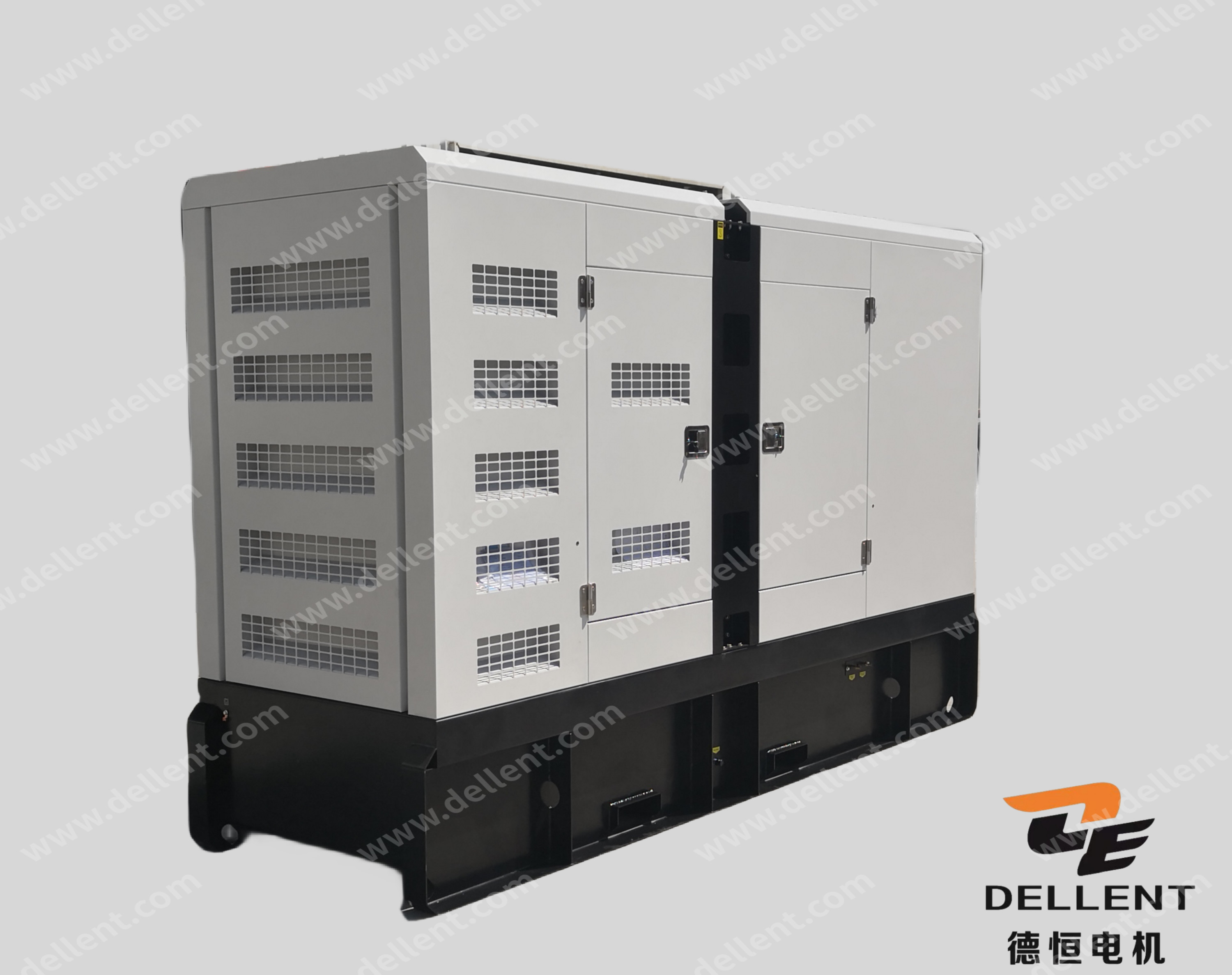

Standby Power Doosan Diesel Generator Set 50Hz 150kVA DP086TA
| Place of Origin | CHINA |
|---|---|
| Brand Name | DELLENT-Doosan |
| Certification | CE ISO |
| Model Number | DE-DS150 |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1PC |
| Price | face to face |
| Packaging Details | PLASTIC WRAP |
| Delivery Time | 30 DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 PCS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Doosan Diesel Generator | Brand | Doosan |
|---|---|---|---|
| Cooling System | Water Cooling | Frequency | 50HZ |
| Alternator | Stamford | Phase | Three Phase |
| Type | Diesel Generator | Controller | Smartgen |
| Engine Model | DP086TA | Rate Current | 208.6A |
| Highlight | Standby Power Doosan Diesel Generator,Doosan Diesel Generator Set,Doosan Genset 150kva |
||
Product Description
DP086TA 50Hz 150kVA Standby Power Doosan Diesel Generator Set
High Light:
Commercial Doosan 150kVA Generator
,DP086TA Engine Diesel Generator
,CE Doosan 150kva Generator ,50HZ
Ⅰ.PRODUCT DESCRIPTION
DP086TA 50Hz 150kVA Standby Power Doosan Diesel Generator Set
Product Introduce:
Looking for reliable Doosan generators for your power needs? Look no further than our Doosan generator dealership! We are proud to offer a wide range of high-quality Doosan gensets that are perfect for both residential and commercial use.
Product parameters:
Specification of 150kVA Emergency Standby Generator:
| Model | DE-DS150 | |
| Max. Power | kVA | 165 |
| kW | 132 | |
| Rate Power | kVA | 150 |
| kW | 120 | |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Fuel Tank Capacity | L | 250 |
| Dimension For Open-type Genset | mm | 2490 X 950 X 1600 |
| Weight For Open-type Genset | kg | 1940 |
| Dimension For Soundproof Genset | mm | 3200X 1080 X 1700 |
| Weight For Soundproof Generator | kg | 2690 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
Specification of Doosan Diesel Engine DP086TA:
| Engine Manufacturer | Doosan Infracore | |
| Engine Brand | Doosan | |
| Engine Model | DP086TA | |
| No. of Cylinder | 6 Cylinder in line | |
| Aspiration | Turbocarged | |
| Governor | Electric | |
| Engine Max. Output Power | kW | 152 |
| Displacement | L | 8.1 |
| Compression Ratio | 16.4 : 1 | |
| Starting Voltage | V | 24 |
| Bore | mm | 111 |
| Stroke | mm | 139 |
| Lubrication Oil Capacity | L | 19 |
| Intake Air Flow | M3/Min | 13.9 |
| Fuel Consumption at 100% Load | L/H | 34.1 |
Specification of Control Panel :
Specification of Control Panel for 150kVA Emergency Standby Generator:
| Controller Brand | Smartgen | |
| Controller Model | HGM6120N | |
| Breaker Brand | Delixi | |
| Breaker Capacity (A) | 250 | |
| Emergency Stop Button | Supply | |
| Automatic Mains Fail (AMF) | Supply | |
| Fuel Level | Supply | |
| Automatic Transfer Switch | ATS as optional part | |
| The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. | ||
Ⅱ. Why Choose Us:
Ⅲ. QUALIFICATION CENTIFICATE:
Ⅳ. FACTORY INTERIOR:
FAQ
Q: What's your delivery time?
A: Standard product 20 days - 30 days.
Q: Can we add our logo to products?
A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q: Can we customize the product?
A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system
If you need DOOSAN generator with other models technical data, kindly contact us for catalogues!
