72kW 90kVA Standby Power Diesel Generator Set With 1000L Dual Fuel Tank

  • 72kW 90kVA Standby Power Diesel Generator Set With 1000L Dual Fuel Tank
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-C90
Document Product Brochure PDF
Minimum Order Quantity 1 PC
Price bargain face-to-face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 1 MONTH 600PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Standby Power Diesel Generator Set Engine Brand Cummins
Engine Model 4BTA3.9-G11 Cooling Method Water-Cooling System
Fuel Type Diesel Prime Power 80kVA / 64kW
Standby Power 90kVA /72kW Rated Frequency 50HZ
Speed 1500RPM Warranty 12 Months/1000 Hours
Genset Type Open Type
Highlight

72kW Standby Power Diesel Generator

,

Standby Power Diesel Generator Set

,

90kva Diesel Generator
Leave a Message
Product Description

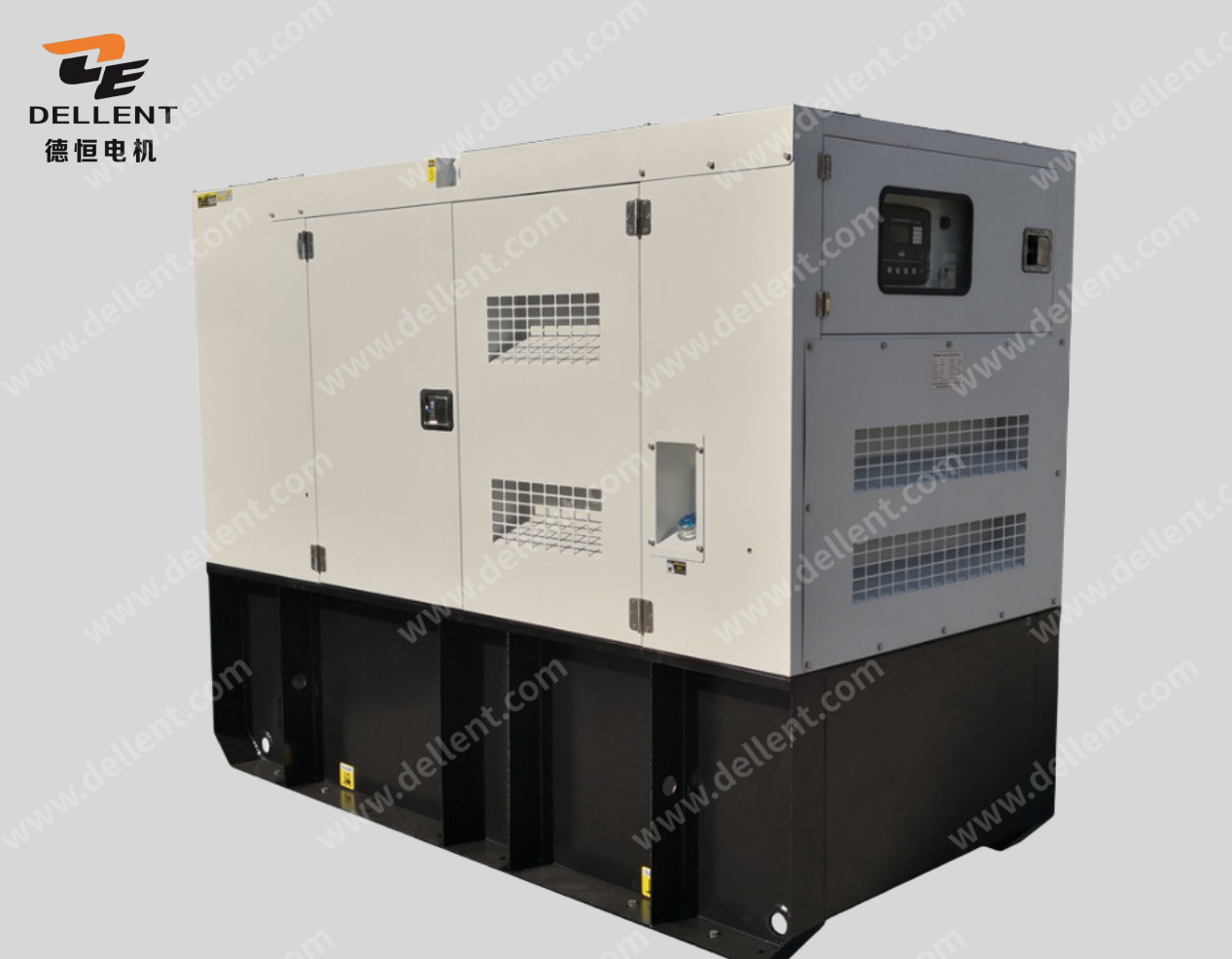

72kW 90kVA Standby Power of Cummins Generator Set With 1000L Dual Fuel Tank

72kW 90kVA Standby Power Diesel Generator Set With 1000L Dual Fuel Tank 0



Ⅰ. PRODUCT

 Cummins Engine Generator:



Model DE-C90
Max. Power kVA 90
kW 72
Rate Power kVA 80
kW 64
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 129.9

Cummins Diesel Engine:

Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 4BTA3.9-G11
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged & Aftercooled
Governor Electric
Engine Max. Output Power kW 77
Displacement L 3.9
Compression Ratio 17.3 : 1
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 11
Intake Air Flow L/S 64
Fuel Consumption at 100% Load L/H 17.6

The Control Panel :

Controller Brand Deepsea
Controller Model DSE6120
Breaker Brand Delixi
Breaker Capacity (A) 160
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.




Ⅱ. Why Choose Us:

72kW 90kVA Standby Power Diesel Generator Set With 1000L Dual Fuel Tank 1

Ⅲ. QUALIFICATION CENTIFICATE:

72kW 90kVA Standby Power Diesel Generator Set With 1000L Dual Fuel Tank 2

Ⅳ. FACTORY INTERIOR:

72kW 90kVA Standby Power Diesel Generator Set With 1000L Dual Fuel Tank 3

Features

1. The complete Cummins generator set is mounted as a whole on a heavy-duty fabricated, steel base frame;

2. Cummins diesel generator Start system with maintenance-free battery;

3. Open type, silent type, super silent type, or mobile type generator.
