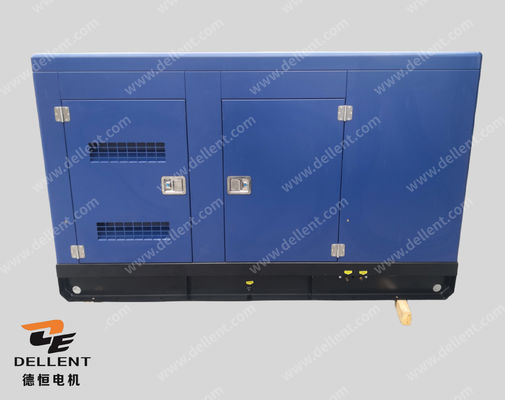

50/60Hz Prime Power Diesel Generator , Cummins 300kw Diesel Generator With 6ZTAA13-G3 Engine

  • 50/60Hz Prime Power Diesel Generator , Cummins 300kw Diesel Generator With 6ZTAA13-G3 Engine
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-C413
Document Product Brochure PDF
Minimum Order Quantity 1 PC
Price bargain face-to-face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 1 MONTH 600PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Prime Power Diesel Generator Engine Brand Cummins
Engine Model 6ZTAA13-G3 Cooling Method Water-Cooling System
Fuel Type Diesel Prime Power 375kVA/300kW
Standby Power 412.5kVA /330kW Rated Frequency 50or60HZ
Speed 1500RPM Warranty 12 Months/1000 Hours
Genset Type Open Type
Highlight

60Hz Prime Power Diesel Generator

,

Cummins 300kw Generator

,

Cummins 300kw Diesel Generator
Leave a Message
Product Description

300kW Prime Power 50/60Hz Cummins Generator Set Cummins Power Generator With 6ZTAA13-G3 Engine

Ⅰ. PRODUCT

 Cummins Engine Generator:

Model DE-C413
Prime. Power kVA 375
kW 300
Standby Power kVA 412.5
kW 330
Frequency Hz 50or60
Rate Voltage V 220/127
Rate Current A 898.9
Dimension For Open-type Genset mm 3300 X 970 X 1650
Weight For Open-type Genset kg 4250 X 1550 X2180
Dimension For Soundproof Genset mm 80
Weight For Soundproof Generator kg 3200



Engine Specification
Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 6ZTAA13-G3
No. of Cylinder 6 Cylinder in line
Aspiration 　 Turbocarged and Air to Air Aftercooed
Governor Electric
Engine Max. Output Power kW 380
Displacement L 13.0
Starting Voltage V 24
Bore mm 130
Stroke mm 163
Lubrication Oil Capacity L 45

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE1620
Breaker Brand Delixi
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

50/60Hz Prime Power Diesel Generator , Cummins 300kw Diesel Generator With 6ZTAA13-G3 Engine 0

Ⅲ. QUALIFICATION CENTIFICATE:

50/60Hz Prime Power Diesel Generator , Cummins 300kw Diesel Generator With 6ZTAA13-G3 Engine 1

Ⅳ. FACTORY INTERIOR:

50/60Hz Prime Power Diesel Generator , Cummins 300kw Diesel Generator With 6ZTAA13-G3 Engine 2

Features

1. The Cummins gen set can be lifted or carefully pushed/pulled by the base frame;

2. Anti-vibration pads are fixed between the engine/alternator feet and base frame;

3. All generator surfaces after acidification and suitable wet condition working.
