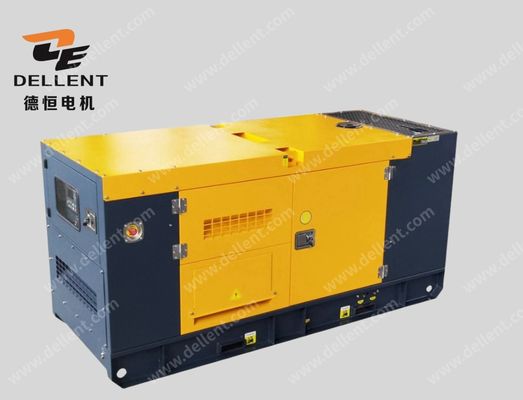

60HZ 25kVA 20kW Deutz Diesel Generator Water Cooled 3 Phase Electric Diesel Generator Set

  • 60HZ 25kVA 20kW Deutz Diesel Generator Water Cooled 3 Phase Electric Diesel Generator Set
Place of Origin CHINA
Brand Name DELLENT
Certification CE ISO
Model Number DE-DD30
Document Product Brochure PDF
Minimum Order Quantity 1*20GP CONTAINER
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Controller Smartgen/Deepsea/ComAp Cooling System Water Cooling
Frequency 60HZ Insulation Class H
Noise Level 72dBA At 7M Phase Three Phase
Power Diesel Generator Protection Grade IP23
Prime Power 22kW/27.5kVA Standby Power 24kW/30kVA
Highlight

20kw Diesel Generator 3 Phase

,

Deutz Diesel Generator Water Cooled

,

20kW Diesel Generator Water Cooled
Leave a Message
Product Description
High Light:

Commercial Deutz 25kVA Generator

,

BFM3-G1Engine Diesel  Generator

,

CE Deutz 25kva Generator ,60HZ

Ⅰ.PRODUCT DESCRIPTION

Water Cooled 60HZ 25kVA 20kW Deutz Diesel Generator Set Electric Diesel Generator
Product Introduce:
Deutz engine diesel generator we have all series from  rated 20kva to 750kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.

Advantage of our Deutz diesel generator :
Deutz diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service.

60HZ 25kVA 20kW Deutz Diesel Generator Water Cooled 3 Phase Electric Diesel Generator Set 0

Product parameters:



Specification of 60kVA Deutz Diesel Generator Set

Model DE-DD30
Max. Power kVA 28
kW 22.4
Rate Power kVA 25
kW 20
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 65.6

Specification of Deutz Alternator:

Engine Manufacturer Deutz (Dalian) Engine Co., Ltd.
Engine Brand Deutz
Engine Model BFM3-G1
No. of Cylinder 4 Cylinder in line
Aspiration   Naturally aspirated
Governor Electric
Engine Max. Output Power kW 25
Displacement L 3.2
Starting Voltage V 12
Bore mm 98
Stroke mm 105
Lubrication Oil Capacity L 7.5



Specification of Control Panel:

Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 80
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.




Ⅱ. Why Choose Us:

60HZ 25kVA 20kW Deutz Diesel Generator Water Cooled 3 Phase Electric Diesel Generator Set 1

Ⅲ. QUALIFICATION CENTIFICATE:60HZ 25kVA 20kW Deutz Diesel Generator Water Cooled 3 Phase Electric Diesel Generator Set 2

Ⅳ. FACTORY INTERIOR:

60HZ 25kVA 20kW Deutz Diesel Generator Water Cooled 3 Phase Electric Diesel Generator Set 3



Features:

  1. Low water cut out engine protection
  2. The Deutz Generator enclosed structure ensures quieter operation
  3. Alternator excitation mode brushless self-excitation
  4. Four Cylinder, four-stroke, water-cooled diesel engine



If you need Deutz generator with other models technical data, kindly contact us for catalogues!
