16kw Deutz 20kva Generator BFM3 G1 Engine Diesel Backup Generator Commercial

  • 16kw Deutz 20kva Generator BFM3 G1 Engine Diesel Backup Generator Commercial
Place of Origin CHINA
Brand Name DELLENT
Certification CE ISO
Model Number DE-DD22
Document Product Brochure PDF
Minimum Order Quantity 1*20GP CONTAINER
Price USD3000-4000
Packaging Details PLASTIC WRAP
Delivery Time 30 DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Deutz 20kva Generator Controller Smartgen/Deepsea/ComAp
Cooling System Water Cooling Frequency 50HZ
Insulation Class H Noise Level ≤75dB(A)
Phase Three Phase Power Diesel Generator
Protection Grade IP23
Highlight

16kw Backup Diesel Generator Commercial

,

Deutz 20kva Generator

,

G1 Engine Diesel Backup Generator
Leave a Message
Product Description
High Light:

Commercial Deutz 20kva Generator

,

BFM3 G1 Engine Diesel Backup Generator

,

CE Deutz 20kva Generator



Product Description

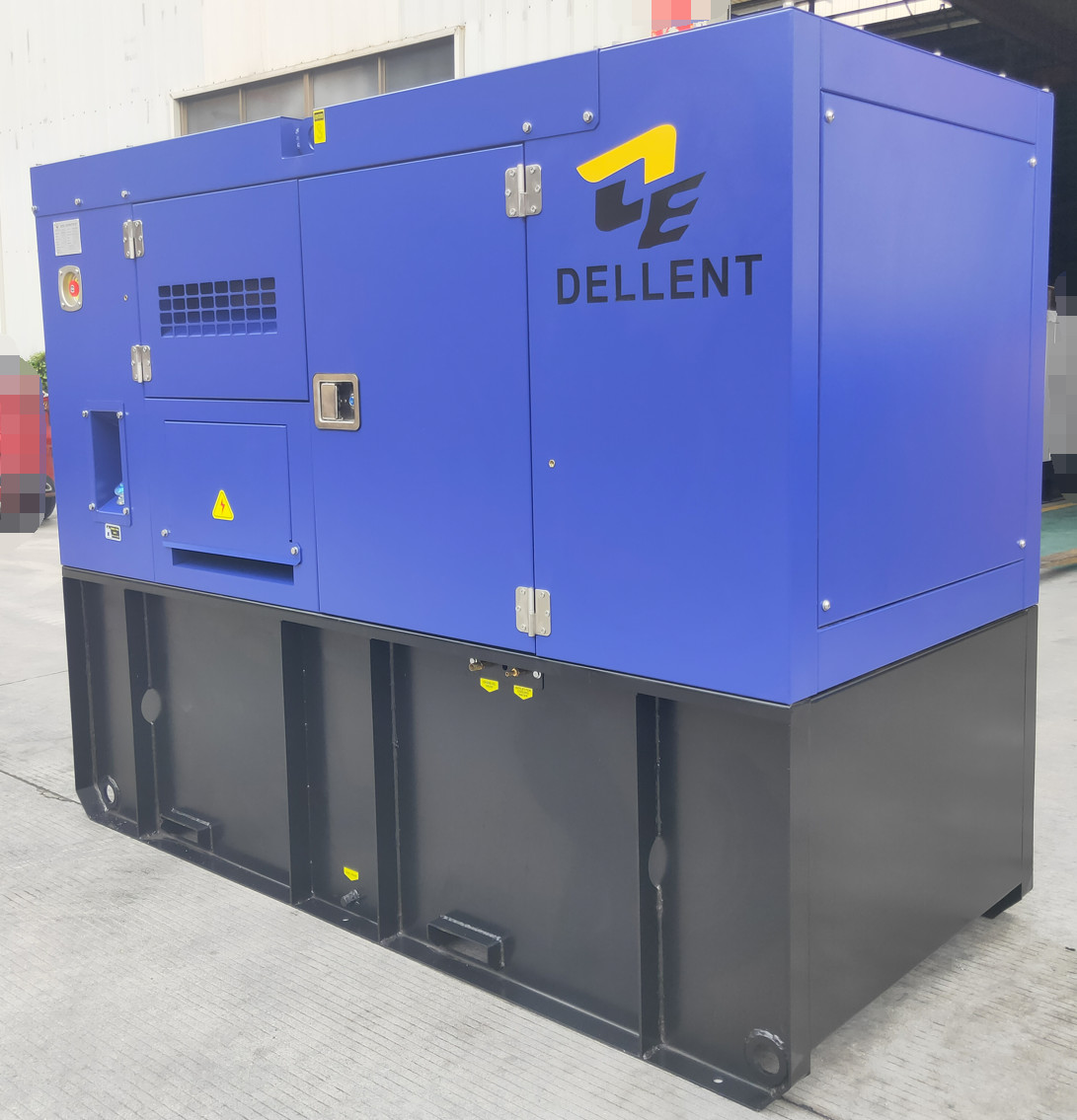

Silent 16kw/20kva Deutz Diesel Generator BFM3 G1

Product Introduce:
Deutz engine diesel generator we have all series from  rated 20kva to 750kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Deutz diesel generator :
Deutz diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.


Product parameters:

We have genset ranged from 10kw-3000kw,50Hz/60Hz, with many different voltages.
Any interest, please contact with us to quote the best price for you
Details Genset GenSet Model DE-DD22 Type Silent(optional open)
Frequency (Hz) 50/60HZ Speed rpm 1500/1800RPM
Phase 3 Rated voltage 230v/380v/400v/415v
Prime output 16kW/20kva(1500rpm) Standby output 18kW/22kva(1500rpm)
20kW/25kva(1800rpm) 22kW/28kva(1800rpm)
Cylinder 4 Cooling system Water
N.W (kg) 754 Size (L*W*H)mm 1850*900*1100
Fuel Con.(L/H) 5.4 Fuel capacity tank 63L
Running time (H) 8 Sound decibel 70DB-75DB
Details Engine Brand DEUTZ
Model BFM3 G1 Fuel Diesel
Cylinder 4 Cooling system Water-cooling
Cylider arrangemant IN-LINE Bore and Stroke(mm) 98 X 105
Cyle 4 Staoke Compression ratio 18.5:1
Governor Mechanical Displacement(L) 3.168
Details Alternator Brand Dellent  , Stamford, Leroy Somer, Mecc Alte
Model  as per different alternator brand name
No.of bearings 1 Insulation class H
Wires 12 Ingress protection IP23
Excitation system Shunt Volrage ±1%
Optional single phase

Delivery date
Custom 30  days after deposit payment
For more details please contact us


If you need Deutz generator with other models technical data, kindly contact us for catalogues!
