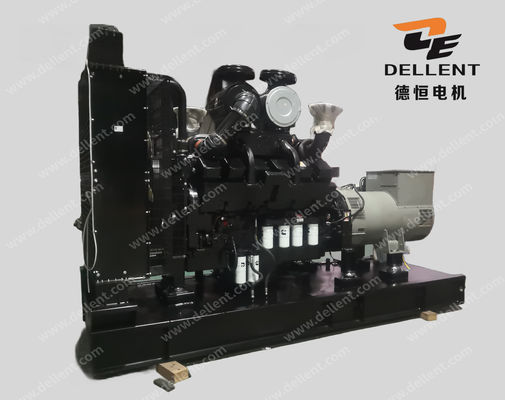

1500kW Standby Power Cummins Power Generator 60Hz Open Type

  • 1500kW Standby Power Cummins Power Generator 60Hz Open Type
Place of Origin CHINA
Brand Name DELLENT
Certification CE/ISO9001
Model Number DE-CC1875
Document Product Brochure PDF
Minimum Order Quantity 1 PC
Price bargain face-to-face
Packaging Details PLASTIC WRAP OR PLYWOOD CASE
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 1 MONTH 600PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Standby Power Cummins Power Generator Engine Brand Cummins
Engine Model KTA50-G9 Cooling Method Water-Cooling System
Fuel Type Diesel Prime Power 1575kVA/1260kW
Standby Power 1875kVA /1500kW Rated Frequency 60HZ
Speed 1800RPM Warranty 12 Months/1000 Hours
Genset Type Open Type
Highlight

Standby Power Cummins Power Generator

,

Cummins Power Generator 60Hz

,

1500kW Cummins Power Generator
Leave a Message
Product Description

1500kW Standby Power 60Hz Cummins Generator Open Type Set Cummins Power Generator



Ⅰ. PRODUCT

 Cummins Engine Generator:

Model DE-CC1875
Max. Power kVA 1875
kW 1500
Rate Power kVA 1575
kW 1260
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 4100.6
Dimension For Open-type Genset mm 5800 X 2090 X 2400
Weight For Open-type Genset kg 5662
Dimension For Soundproof Genset mm 12192 X 2438 X 2896
Weight For Soundproof Generator kg 6850



Engine Specification
Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model KTA50-G9
No. of Cylinder 16 Cylinder V Type
Aspiration   Turbocarged & Aftercooed
Governor Electric
Engine Max. Output Power kW 1656
Displacement L 50.3
Starting Voltage V 24
Bore mm 159
Stroke mm 159
Lubrication Oil Capacity L 135

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE1620
Breaker Brand Delixi
Breaker Capacity 80A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.



1500kW Standby Power Cummins Power Generator 60Hz Open Type 0

Ⅱ. Why Choose Us:

1500kW Standby Power Cummins Power Generator 60Hz Open Type 1

Ⅲ. QUALIFICATION CENTIFICATE:

1500kW Standby Power Cummins Power Generator 60Hz Open Type 2

Ⅳ. FACTORY INTERIOR:

1500kW Standby Power Cummins Power Generator 60Hz Open Type 3
