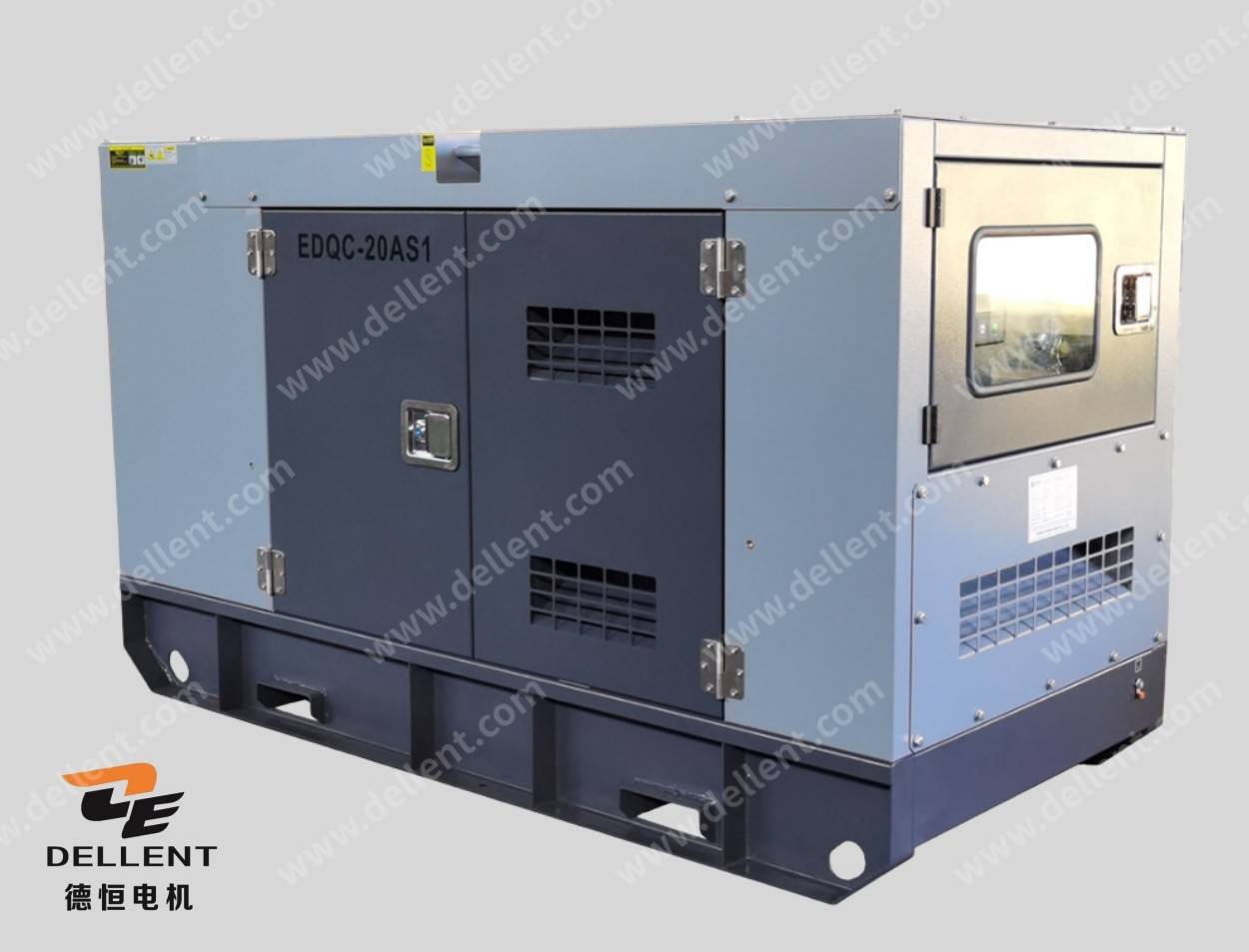

15kVA 50HZ Quanchai Diesel Generator 12kW With N485D Engine

  • 15kVA 50HZ Quanchai Diesel Generator 12kW With N485D Engine
Place of Origin CHINA
Brand Name DELLENT-QUAN CHAI
Certification CE ISO
Model Number DE-Q17
Document Product Brochure PDF
Minimum Order Quantity 1PC
Price face to face
Packaging Details PLASTIC WRAP
Delivery Time 20-30 DAYS
Payment Terms L/C, T/T
Supply Ability 500 PCS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cooling System Water Cooling Frequency 50HZ
Alternator Tamford/ Leroy Somer/ Mecc Alte Controller Model Deepsea/ ComAp/Smartgen
Type Diesel Generator Controller Smartgen DSE
Engine Model N485D Prime Power 15kVA/12kW
Standby Power 17kVA/13kW Brand QUAN CHAI
Name Quanchai Diesel Generator
Highlight

50HZ Quanchai Diesel Generator

,

Quanchai Diesel Generator 12kW

,

12kW Diesel Generator
Leave a Message
Product Description
 Light:

Commercial QUAN CHAI 15kVA Generator

,N485D

 Engine Diesel  Generator

,

CE QUAN CHAI 15kVA Generator ,50HZ

Ⅰ.PRODUCT DESCRIPTION

15kVA 12kW 50HZ Diesel Generator with N485D QUAN CHAI Generator
Product Introduce:
Our Quan Chai engine diesel generator have all series from 10kva to 40kva.
Application fields:
Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare,Data Centers,Telecommunications,Construction,Manufacturing,Oil and Gas,Military,Residential electricity.
Advantage of our Quan Chai diesel generator :
Quan Chai diesel generator have a sturdy housing；
Longer lifespan；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.
15kVA 50HZ Quanchai Diesel Generator 12kW With N485D Engine 0

Product parameters:

Specification:

Model DE-Q17
Max. Power kVA 17
kW 14
Rate Power kVA 15
kW 12
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 21.7

Technical Data of Quan Chai Diesel Engine:



Engine Manufacturer Anhui Quanchai Engine Co., Ltd.
Engine Brand Quanchai
Engine Model N485D
No. of Cylinder 4 Cylinder in line
Aspiration Naturally Aspirated
Governor Mechanical
Engine Max. Output Power kW 17
Displacement L 2.156
Starting Voltage V 12
Bore mm 85
Stroke mm 95
Lubrication Oil Capacity L 6
Compression Ratio 18 : 1
Intake Air Flow M3/Min 1.7
Fuel Consumption at 100% Load L 5.1

Technical data--Controller

Controller Brand Smartgen
Breaker Brand Delixi
Breaker Capacity (A) 32
Battery Charger Smartgen
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with DELLENT Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Ⅱ. Why Choose Us:

15kVA 50HZ Quanchai Diesel Generator 12kW With N485D Engine 1

Ⅲ. QUALIFICATION CENTIFICATE:15kVA 50HZ Quanchai Diesel Generator 12kW With N485D Engine 2

Ⅳ. FACTORY INTERIOR:

15kVA 50HZ Quanchai Diesel Generator 12kW With N485D Engine 3



If you need Quan Chai generator with other models technical data, kindly contact us for catalogues!

1: The diesel generator should be placed in a well ventilated area to ensure heat dissipation;

2: Diesel generators should regularly inspect and replace vulnerable parts such as engine oil and air filter elements to ensure their normal operation;

3: When running diesel generators, attention should be paid to the quality and storage method of fuel, to avoid using inferior fuel or improper storage that may cause malfunctions;

4: When using diesel generators, appropriate loads should be used according to requirements to avoid overload or underload leading to faults;
